Molex CMC 28-way Automotive Connector Backshell Cap, 64320-1301

Molex CMC Hybrid Connectors - Accessories

Accessories for CMC Hybrid Connectors (see stock number 723-9359 typically)
723-9381 is a 1.5 mm cavity plug
896-7431 is a 0.635mm cavity plug
723-9384 is a Wire cap for 32 way
774-8156 is a Wire cap for 28 and 48 way

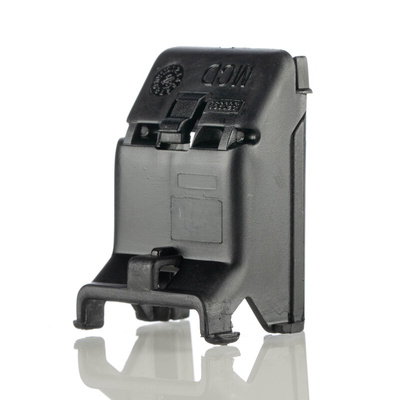

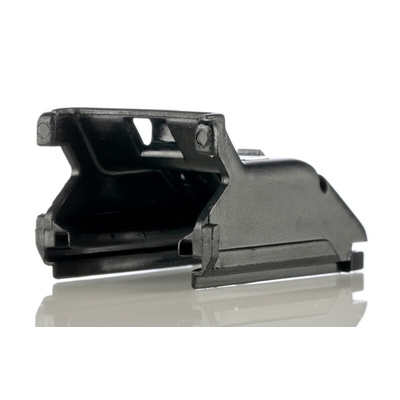

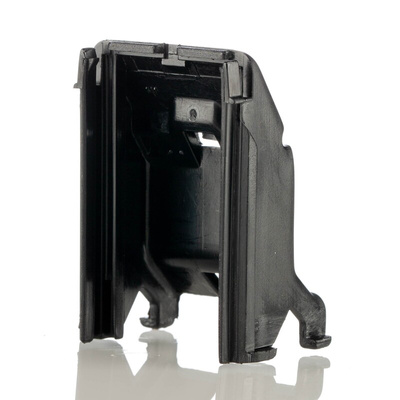

Molex Automotive Connector Backshell Cap For 28-Way and 48-Way Circuits - CMC Series - 64320-1301

Use this backshell cap from Molex to protect automotive connectors from dirt and moisture. It's mat sealed to stop water and dust from getting through the cable entry point, keeping your circuit shielded and working effectively. This cap has a discreet black surface and fits MC Series 28-way and 48-way connectors so it's suitable for various applications. Install it to improve the performance of critical circuits that control vehicle functions such as brakes, gears and doors.

• Low weight of 4.890g means it won't add unnecessary strain to circuits mounted on engine and chassis parts
• Quick clips to attach and remove without the need for screws or tools

Applications

• Engine control units
• Automatic gear boxes
• Suspension controllers
• Fuse boxes
• Electric doors

What's this backshell cap made from?

This connector cap is made from heat-stabilised polyamide 66, so it's mechanically strong and resistant to chemicals and high temperatures.

Can I use electrical tape instead of a backshell cap?

Electrical tape is less effective for covering connectors because it doesn't provide any impact resistance. It's also trickier to remove than a fitted backshell cap like this one.
