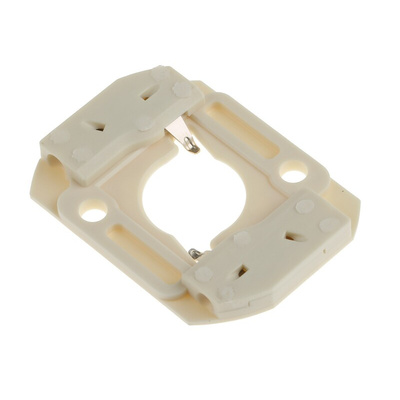

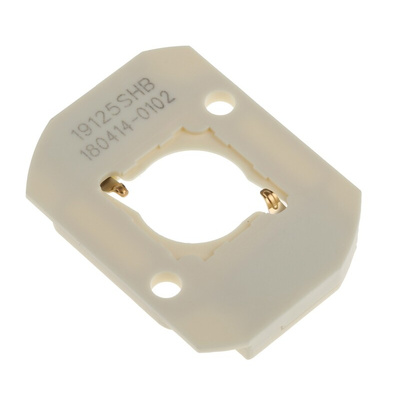

180414-0102, Molex CoB LED Holder for Citizen CLL020 34.85 x 26mm

Molex Citizen CLL LED Array Holders

The Molex LED Array Holders for Citizen CLL CoB's are ideal for OEM light-fixture manufacturers by simplifying the LED installation process and reducing installation time through the use of solderless compression contacts that eliminate the need for hand or SMT soldering and expensive SMT equipment. These LED Array Holders allow: CoB LED arrays to be quickly installed into fixtures, enable field replacement by use of releasable wire-traps and facilitate upgrades to exisiting applications. Molex Citizen CLL CoB LED Array Holders are ideal for applications including: Architectural lighting, Area lighting and Down lighting.

Compression contacts to power array are Gold plated
Wire-trap terminal to attach power source, suitable for wire size 18AWG or 20AWG
Releasable wire trap for rework or replacement for field serviceability
Holes for screw-mount attachment of LED array and holder to heat sink allow either M3 or 4-40 screws
Provides voltage isolation between LED and heat sink
Stable connection in high-ambient temperature
Ideal for lamp and small-fixture applications, including MR16 or track lighting

Note

The following stock number is a single piece design with a Double-ended wire-trap terminal:
For CLL040 775-0709

Molex Compression Contact LED Holder, 34.85mm - 180414 Series - 180414-0102

Minimise time spent installing LED (light-emitting diode) systems in light fittings with this Molex LED holder. It lets you insert LED components easily via a convenient installation process that doesn't require soldering – simply embed the contacts into the compression hole in the array holder. Made for citizen arrays, specifically Citizen CLL020, this holder does away with the need for specialist soldering equipment. You can use it when installing and maintaining LED lighting systems both indoors and outdoors.

• Integrated pre-hold trap for a more secure fit
• Durable plastic body for minimal interference in light projection
• Simple wireless installation system promotes sustainable energy use
• Housed in high-temperature thermoplastic for use in extreme environments
• Gold-plated compression contact protects against corrosion and allows for longer use

Applications

• Aerial lighting
• Alert systems
• Home light fixtures
• Track lighting

How easy is it to dismantle this Molex LED holder?

This LED holder is installed via a wireless method, which means it can also be taken apart easily if needed. It features a releasable wire trap system that can be operated on the go, allowing for convenient maintenance and dismantling on the field.
