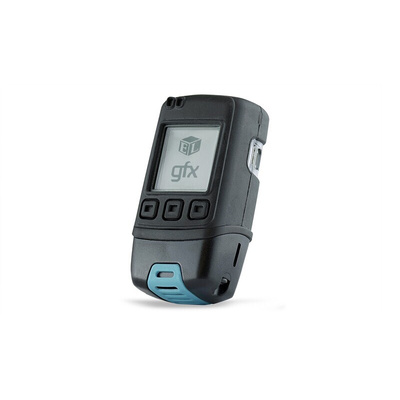

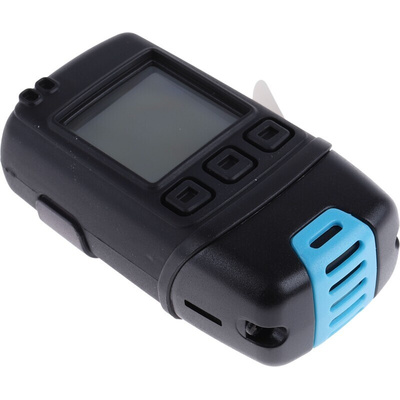

Lascar EL-GFX-2 Temperature & Humidity Data Logger, USB, Логгер

Lascar Data Loggers

The Lascar EL-GFX-2 standalone data logger measures and stores over 250,000 temperature and humidity readings between -30°C and 80°C (-22°F to 176°F) and 0 to 100% RH range at a resolution of 0.1°C (0.2°F) and 0.1% RH. This data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
2 x 1/2 AA 3.6 V Lithium batteries, USB cover, mounting clip, Mini-B to A USB cable

Features and Benefits

The measurement ranges between -30°C and 80°C (-22°F and 176°F)
Temperature measurement accuracy is ±0.35°C
Humidity measurement accuracy is ± 2.05% RH
Logging rates between 10 seconds and 1 hour
Number of readings per channel is 2,51,928
Immediate and delayed logging start
User-programmable audible alarm thresholds with highly visible LEDs
On-screen graphing, and menu options to start, stop, review and restart the logger in the field
Battery life is up to 1 year
Supplied with a 1/2AA two lithium metal battery

Applications

Building and site monitoring
Outside environmental data
Housing and business premises
Museums and exhibitions

Certifications

IP67 Rated

EL-GFX-2 - Quick Start Guide

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Datasheet
