CTSCMICRO19-200/5-T-S, HOBUT CTSCM Series Split Core Current Transformer, 200:5, Трансформатор тока

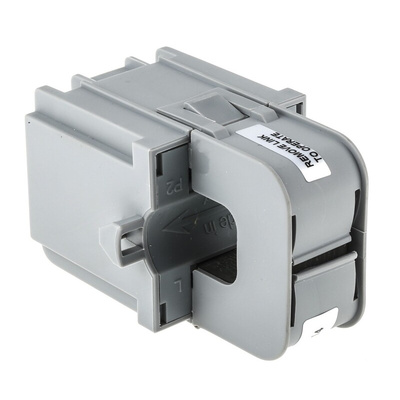

HOBUT Split-Core Current Transformer

The HOBUT MICRO 19 split-core current transformer is amongst the smallest available. It can be supplied with a choice of screw clamp terminals, flying leads and unique plug-in short circuit link. It is for installation into existing networks in complete safety. It has a primary current of 200A and a secondary output of 5A. The CT will not operate until the plug-in link is removed.

Features and Benefits

Class 1 accuracy
M3.5 Terminals and short circuit link
Rated system voltage ranges between 0.72kV to 3kV
VA rating is 100/150A = 0.5VA
Overall height of 78mm, width of 49mm and depth of 58mm
Operating temperature ranges between -30°C and 55°C

Certifications

ANSI/ESD S20.20:2014
BS EN 60044-1
BS EN 61340-5-1:2007
IEC 60044-1
CE certified
