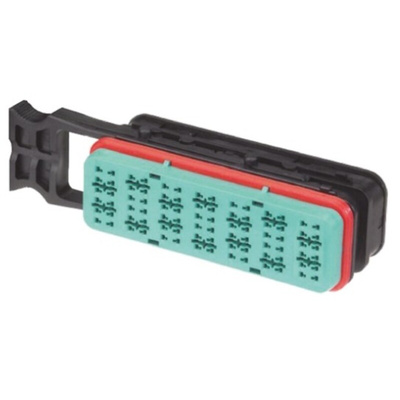

93287-0001, Molex, SRC Connector Housing Socket 84 Way, Crimp Termination

SRC Signal Housings

This range of Molex Sealed Rectangular Connectors (SRC) with a 4.00 mm pitch are ideal where single-handed blind-mate functionality is required. These signal SRCs use proven MX150 terminals, see stock numbers: 720-5700 for male contacts and 720-5716 for female contacts typical.
A conduit interface with a right hand Ø28 mm female cable exit for use on the Female connector is available, see stock number 775-4451 .

Protection rating: IP69 / IP69K

Molex Automotive Connector, 18A Maximum Per Contact, 84 Pin Signal - 93287 Series - 93287-0001

When getting at your connection points is tricky, this automotive connector from Molex provides a solution. Thanks to its one-handed functionality, this sealed rectangular connector housing is valuable when your links are in tight or hard-to-reach locations with limited visibility. Each of its 84 pins can handle a maximum current of 18A, so it's a sturdy choice for heavy-duty systems. The unit's robust black nylon construction is highly durable, so it'll be with you for the long haul.

Features & Benefits

• Operating temperature range of -40°C to +125°C for performance in harsh environments
• Light weight of 121.830g makes handling a breeze
• Panel-mountable to enable straightforward installation

Applications

• Haulage industry
• Marine equipment
• Construction vehicles

Where would I use a sealed rectangular connector housing?

Because of their high heat tolerance, you'll typically find housings like this between the cab and engine of a truck.

The Molex Sealed Rectangular Connector (SRC) Range

The Molex Sealed Rectangular Connector (SRC) Range is a Next-generation 84-way system with a single-handed blind-mate functionality. By using the proven MX150™ and MX150L™ terminals the Sealed Rectangular Connector (SRC) Range is able to offer a hybrid, high power-and-signal circuit-count system for harsh applications such as found in commercial vehicles.

SRC2 Female 84 Pin Receptacle Housing Assembly - Drawing
