Dataman Dataman 48Pro2C, Universal Programmer for EEPROM, eMMC, EPROM, Flash, MCU/MPU, NAND Flash, NV Ram, PLD, Serial

Dataman ISP Programmer

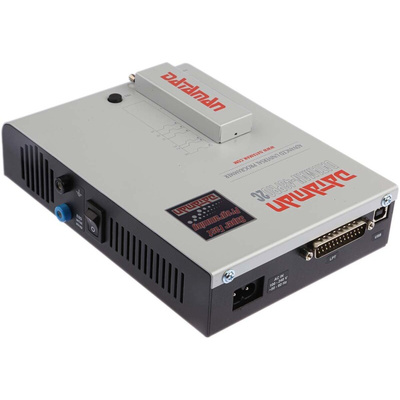

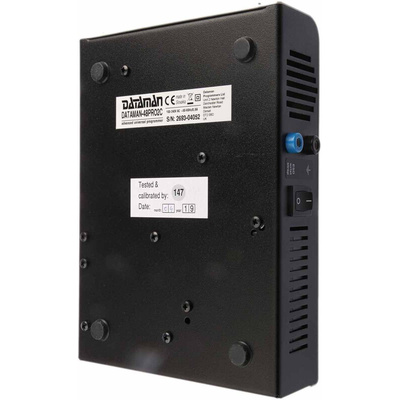

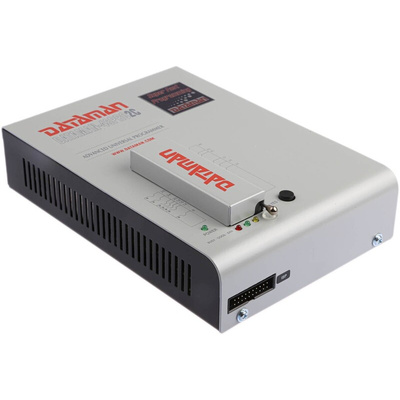

The Dataman ISP programmer is a Super-fast PC based universal 48-pin chip programmer with ISP capabilities and USB 2.0 connectivity. This programmer is designed to meet the needs of development labs and field engineers. Supporting over 86,000 devices with new devices added monthly, it can be a program without the need for a family-specific module, giving you the freedom to choose an optimal device for your design. With the built-in ISP connector, you can program ISP compatible chips in the circuit. It is suitable for EEPROM, EMMC, EPROM, Flash, MCU/MPU, NAND Flash, NV Ram, PLD, Serial EEPROM, Static RAM.
Supplied with:

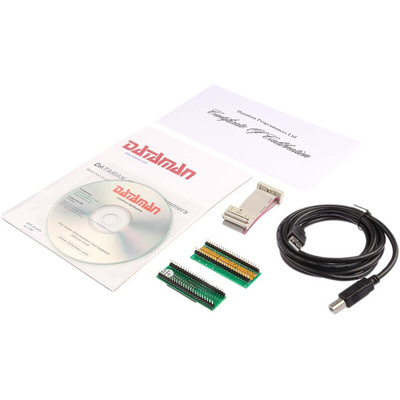

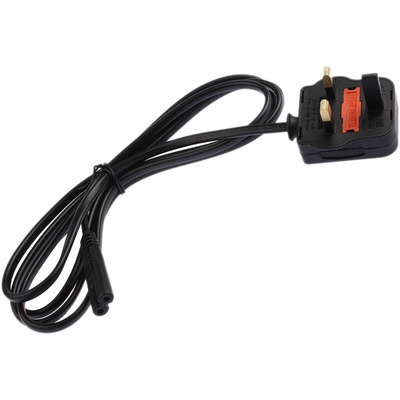

Mains power cable, USB cable and ISP cable, diagnostic POD for programmer/ISP connector testing, anti-dust cover, user manual and software

Features and Benefits

Easy to use software compatible with the latest operating systems including Windows 10
Free lifetime software updates
Full ISP capabilities including JTAG compatibility
Hi-speed USB 2.0 connectivity
Intelligent pin drivers operate down to 1.8V enabling the latest low voltage devices to be programmed
Multiprogramming support allows one PC to control up to four units programming independently or as a gang programmer

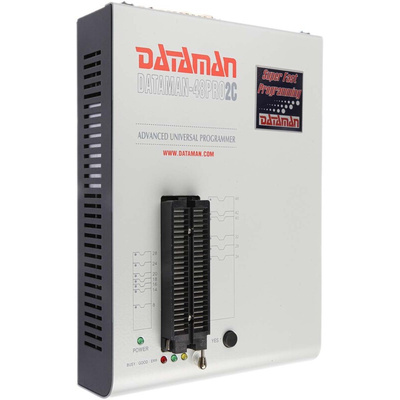

ZIF socket accepts both, 0.3in and 0.6in (7.62mm to 15.24mm) wide DIP devices with up to 48 pins
Up to 70% faster programming of high capacity memory devices

Dataman 48 Pro2c Datasheet

ESD Control Selection Guide V1

Dataman-48Pro2C Device List

Datanab 48Pro2C User Manual
