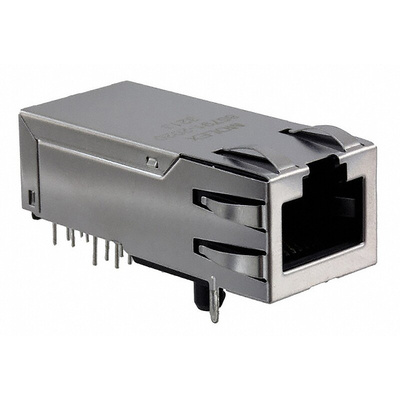

85791-2020, Molex PDJack Series Female RJ45 Connector, Through Hole, Cat5, Cat5e, Разъем

Molex RJ45 PDJack™ Modular Magnetic Jacks

Magnetic RJ45 single port PDJack™ with integrated PD (Power Device) controller circuitry and PoE Plus Ethernet connectivity. The bridge rectifiers accommodate all PSE (Power Sourcing Equipment) types as required for IEEE compliance and the detection and classification circuitry is fully IEEE802.3 compliant. The RJ45 magnetic PDJack™ has stainless steel EMI shielding and ESD protection as well as an efficient thermal design which makes it suitable for use in wide operating temperature ranges and passive airflow environments. Two pins of the RJ45 PDJack™ output power, standard signal pins provide Ethernet connectivity and additional pins allow power-up of external DC to DC converter. The PDJack™ manages all communications with switch/router PoE controllers including negotiating power requirements and managing safe power-up and power-down of PD devices such as IP phones, IP cameras, wireless access points, control panels, vision systems and POS units. All models are highly reliable and excellent quality.

Features & Benefits

The RJ45 magnetic PDJack™ is available in different classes allowing limitation of power outputs.
Stock number 775-4833 is Class 0 with a maximum power output of 13 W
Stock number 775-4836 is Class 1 with a maximum power output of 3.84 W
Stock number 775-4842 is Class 2 with a maximum power output of 6.49 W
Stock number 775-4846 is Class 3 with a maximum power output of 13 W
Stock number 775-4855 is Class 4 with a maximum power output of 25.5 W
The RJ45 magnetic PDJack™ mates with plugs according to IEC 60603-7, series 95043, 44915 and 85568.

Note

PoE Plus according to IEEE standard requires Cat5 cable or higher

Standards

IEEE802-3at
