Cable primary high accuracy current transformer
Primary current range 50-150A
1% accuracy
Operating frequency 50/60Hz
Turns ratio 2500:1
Rated burden resistance 33 Ω
Dielectric with stand voltage 4KVrms
Operating temperature range -40 to +85ºC
All materials UL94-V0

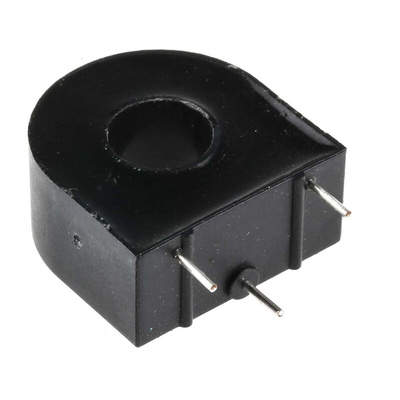

Nuvotem Talema Circuit Transformer
The Nuvotem Talema circuit transformer has an input current of 50A. This PCB mount transformer has turned the ratio of 2500:1. It has rated burden resistance of 33ohm and dielectric withstand voltage of 4kVrms.
Features and Benefits
Extremely low price
Excellent quality
1% accuracy
Operating frequency ranges between 50Hz and 60Hz
Dimensions are 23.8 x 23.8 x 11.12mm
Operating temperature ranges between -40°C and 85°C
frequency range is 50/60Hz
PC pin termination style
Applications
Sensing overload current
Ground fault detection
Metering
Analog to digital circuits
Certifications
UL94-V0
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Low Cost Current Sense Transformers
