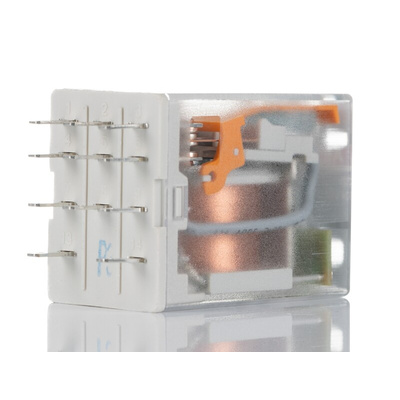

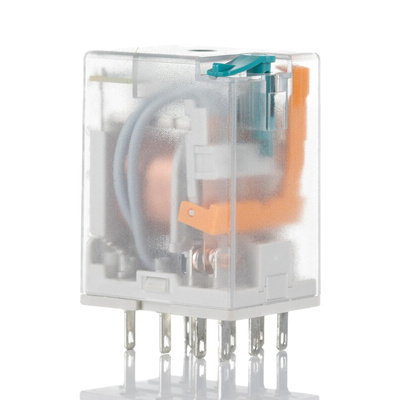

1SVR405611R1100 CR-M024DC2L, ABB Plug In Power Relay, 24V dc Coil, 12A Switching Current, SPDT

ABB Power Relay, 13ms Turn-On Time, 33g Weight - CR-M Series - 1SVR405611R1100 CR-M024DC2L

Kick your systems up a gear with this power relay from ABB. Use it to open or close high-current circuits in PCBs. The component's silver alloy contacts provide superior electrical conductivity, ensuring smooth-as-silk operations. Thanks to a coil resistance of 640Ω, you can energise the coil with a relatively low amount of current. This ensures a fast response time and low power consumption. Plug-in mounting makes installation as easy as ABC since you only need a standard socket rather than specialised tools.

Features & Benefits

• Broad operating temperature range between -40°C and +70°C for use in extreme environments
• Slim dimensions of 21.2 (L) x 27.5 (D) x 35.6mm (H) fit easily into a small enclosure
• IP40 rating indicates its protected against tools and wires greater than 1mm

Applications

• Industrial automation
• Telecommunications
• Renewable energy systems

Does this power relay have an LED indicator?

Yes, it has a built-in LED indicator for easy status monitoring and troubleshooting.

What type of terminals does it have?

It has screw terminals, so it's quick and easy to make a secure connection.

Pluggable Interface Relays CR-M Miniature Relays Data Sheet

Catalogue - Electronic Relays And Controls

Brochure - Push In Sockets

Datasheet - 1SVR405611R1100 CR-M024DC2L
