1SVR405618R1100 CR-M024DC4LG, ABB Plug In Power Relay, 24V dc Coil, 6A Switching Current, SPDT

ABB Power Relay, 35.6mm Height, Cadmium-Free - CR-M Series - 1SVR405618R1100 CR-M024DC4LG

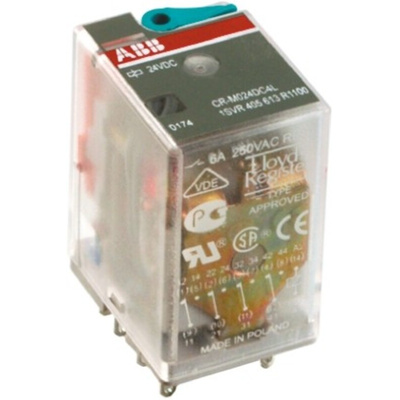

Make the switch to reliable performance with this plug-in power relay from ABB. You can count on dependable electrical signal transmission thanks to its highly conductive silver-nickel alloy contacts. Equipped with four c/o (changeover) SPDT contacts, it allows for the management of multiple circuits. For easy troubleshooting and maintenance, there's an integrated test button and LED status indicator. The small unit, measuring just 21.2 (L) x 35.6 (H) x 27.5mm (D), saves space in a crowded enclosure.

Features & Benefits

• Lightweight unit, weighing just 33g, puts minimal strain on PCBs
• Broad operating temperature range between -40°C and +55°C for use in harsh conditions

Applications

• Medical equipment
• Consumer electronics
• Automated industrial processes
• Food and beverage production
• Automotive industry

How quickly does this power relay turn operations on and off?

It's a rapid-response unit with an 8ms turn-off and 10ms turn-on time.

How much power does it take to activate a power relay?

It needs 60% to 80% of the rated voltage to activate. This power relay has a rated coil voltage of 24V DC.
