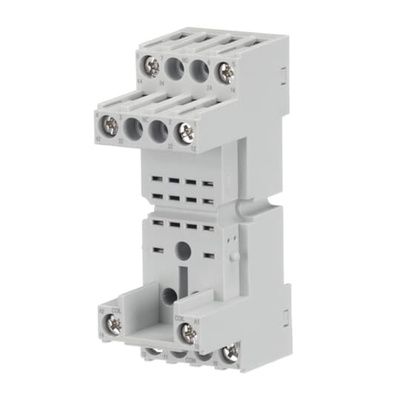

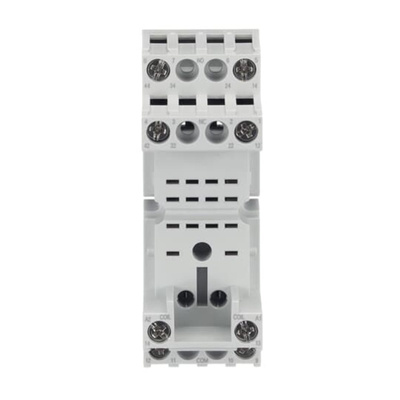

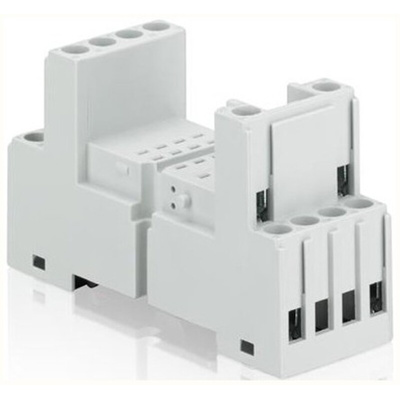

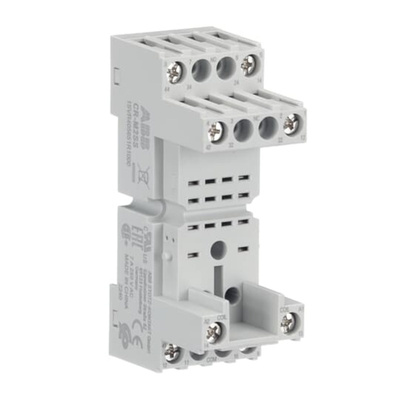

1SVR405651R1000 CR-M2SS, ABB CR-P/M PCB Mount Relay Socket

ABB Relay Socket, 16A Switching Current, 24V DC Coil Voltage - CR-P/M Series - 1SVR405651R1000 CR-M2SS

Need a way to securely fit a switching gear on a PCB? This relay socket from ABB creates a reliable link between your switch and control instrument for streamlined operations. Once mated with a relay, simply snap it onto a DIN rail for convenient, tool-free installation. The highly conductive, gold-plated contacts transmit strong signals to boost system reliability. A small footprint of just 12.7 (L) x 15.7 (H) x 29mm (D) means this socket easily squeezes into a crowded enclosure.

Features & Benefits

• Lightweight component, weighing only 66g, puts minimal strain on the PCB
• 16A switching current rating for use with heavy-duty systems
• Wide operating temperature range between -40°C and +70°C for use in challenging conditions

Applications

• Medical equipment
• Automated industrial machinery
• Consumer electronics
• Laboratory instruments

What size wires does this relay socket take?

The unit handles flexible wire sizes between 20 to 16 AWG and fixed ones between 20 and 14 AWG.

Why should I use a relay socket instead of directly mounting a power relay on a PCB?

Relay sockets simplify the mounting process and offer a more secure fit.

Catalogue - Electronic Relays And Controls

Brochure - Push In Sockets

Datasheet - 1SVR405651R1000 CR-M2SS
