RS PRO 3 Core Power Cable, 0.75 mm², 100m, Grey PVC Sheath, 3183Y, 6 A, 300 V, 500 V

RS PRO 3-Core 0.75 mm² 3183Y H05VV-F Mains Power Cable, Grey PVC Sheath, 100 m, 6 A 300 V, 500 V

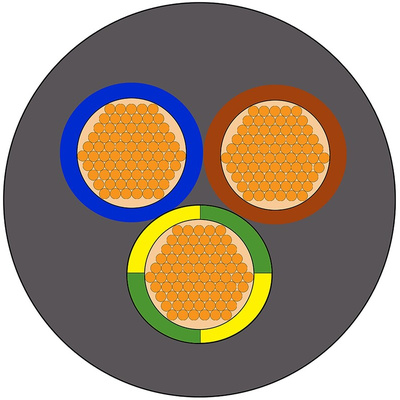

Need to wire household appliances like washing machines and fridges that have potentially humid conditions or low mechanical stress? Choose this RS PRO 3183Y power cable. It has three cores wrapped in colour-coded polyvinyl chloride insulation for easy identification.
The cable jacket is also made from PVC, which protects the copper wires from damage caused by heat, mechanical stress and oil, increasing safety and ensuring a long product life. The PVC material is also fire-retardant, to help minimise the risk of fire. This cable meets Euroclass ECA standards, meaning you can safely install it inside buildings that meet basic fire safety requirements.

Features and Benefits

• American wire gauge size of 18 AWG
• Copper conductor material
• Conductor resistance of 26 Ω/km
• Stranded conductor type
• Cross sectional area of 0.75 mm²
• Current rating of 6 A
• H05VV-F harmonised code for flexible cables for small appliances
• Length of 100 m
• Three cores
• Maximum operating temperature of +70°C
• Outer diameter of 6.47 mm
• Grey sheath colour
• Polyvinyl chloride (PVC) sheath material
• Meets Euroclass Eca fire safety standards
• 3183Y type flexible three-core low-voltage cable
• Voltage rating of 300 V, 500 V

Datasheet

EN 50525-2-11

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
