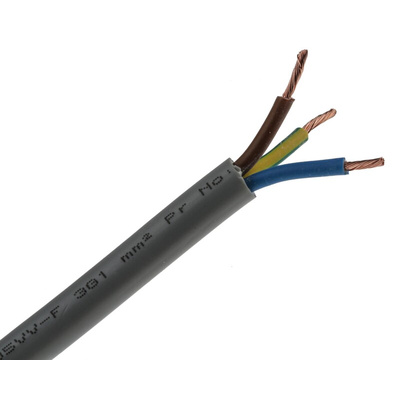

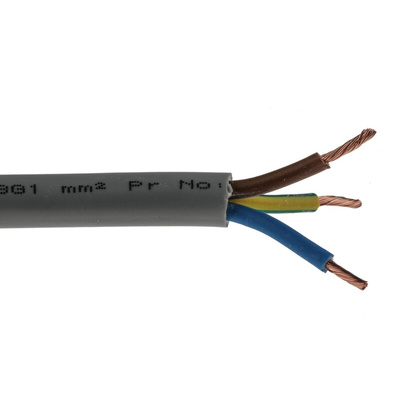

RS PRO 3 Core Power Cable, 1 mm², 100m, Grey PVC Sheath, 3183Y, 10 A, 300 V, 500 V

RS PRO 3 Core 1 mm² Mains Power Cable, Grey Polyvinyl Chloride PVC Sheath 100 m, 10 A 300 V, 500 V, 3183Y H05VV-F

Need a mains power cable to run household appliances in dry or steamy areas? This 3-core PVC-insulated cable from the RS PRO range will be up to the task. Its grey sheath is crafted from hardwearing PVC, ensuring it's durable enough for most home wiring jobs.

The cable is available in a length of 100 m. Further dimensions include an outer diameter of 6.91 mm and a cross-sectional area of 1 mm².

You'll find that the product can operate at temperatures all the way up to +70˚C. This power cable has also been tested against a range of international standards, so you can be sure it's safe in buildings that must adhere to basic fire safety requirements (Euroclass Eca). What's more, it's been certified by the standard VDE 0250-602 as a safe single-core flexible power cable.

Typically, this cable is found in kitchens and offices, for use with domestic appliances.

Features and Benefits

• Three-core 3183Y mains power cable
• Reel length of 100 m
• Stranded cable with grey PVC sheath for flexibility
• 17 AWG
• Copper conductor
• Resistance of 19.5 Ω/km
• Voltage rating of 300 V, 500 V
• Current rating of 10 A
• Outer cable diameter of 6.91 mm
• Cross-sectional area of 1 mm²
• Maximum operating temperature of +70˚C
• RoHS compliant (hazardous substances)
• H05VV-F harmonised code
• Euroclass Eca compliant (fire safety)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

RS PRO Datasheet
