42815-0012, Molex Mini-Fit Sr Series Female Crimp Terminal, 12AWG Min, 10AWG Max, Контакты

Molex Mini-Fit Sr. Crimp contacts - 42815 and 42817 Series

Male and female crimp terminals for use in Mini-Fit Sr. receptacle and plug housings able to support up to 50 A. These crimp terminals are available with a silver plating which is more cost effective than gold and also offers corrosion resistance and good conductive qualities. The receptacle terminals have a dual beam design with four points of contact for high contact reliability and long-term electrical performance. These crimp terminals also have a low insertion force

Features and Benefits

• Support up to 50 A
• Silver plating offers cost savings, corrosion resistance and high conductivity
• Dual beam design with four points of contact for high electrical reliability
• Low insertion force

Product Application Information

Mini-Fit Sr. power connectors are suitable for use in the industrial, consumer, automotive, telecommunications and medical industries. Applications include printers, power supplies, washers, dryers, motorcycles, commercial vehicles, servers and X-ray machines

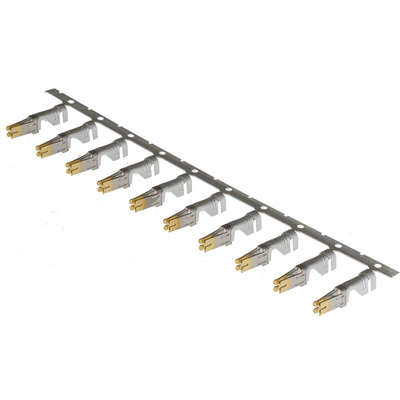

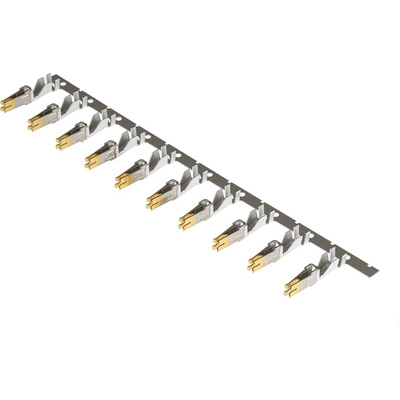

Molex Mini-Fit Sr Crimp Terminal, 12 to 10AWG - 42815 Series - 42815-0012

A high current-carrying capacity makes this crimp terminal from Molex ideal for demanding power applications. Its gold contact plating gives the connector outstanding resistance to corrosion as well as high levels of electrical conductivity for superior performance. Low insertion force allows for easier wiring and reduced wear on your cables. Its receptacle terminals have a dual-beam design featuring four contact points that give you high contact reliability and long-term electrical performance. This unit is suited to use with the Molex Mini-Fit Sr power connectors range.

• Crimp termination method for a gas-tight connection that prevents air and moisture from corroding wiring
• Able to operate in temperatures ranging from -40°C to +105°C while still retaining high levels of reliability
• Polarised mating geometry that can't be mismatched

Applications

• Data and communications networks
• Automotive manufacturing
• Food and beverage industry

Is this crimp terminal flame-retardant?

All components from the Molex Mini-Fit family carry a UL 94-V0 (Underwriters Laboratories) rating, which means they're self-extinguishing and don't pose a fire hazard.

Can I install this connector in a confined space?

Yes, as the terminal features a self-aligning interface that makes it easier for you to mate connectors in hard-to-reach areas.
