42817-0032, Molex Mini-Fit Sr Series Male Crimp Terminal, 8AWG Max, Контакты

Molex Mini-Fit Sr. Crimp contacts - 42815 and 42817 Series

Male and female crimp terminals for use in Mini-Fit Sr. receptacle and plug housings able to support up to 50 A. These crimp terminals are available with a silver plating which is more cost effective than gold and also offers corrosion resistance and good conductive qualities. The receptacle terminals have a dual beam design with four points of contact for high contact reliability and long-term electrical performance. These crimp terminals also have a low insertion force

Features and Benefits

• Support up to 50 A
• Silver plating offers cost savings, corrosion resistance and high conductivity
• Dual beam design with four points of contact for high electrical reliability
• Low insertion force

Product Application Information

Mini-Fit Sr. power connectors are suitable for use in the industrial, consumer, automotive, telecommunications and medical industries. Applications include printers, power supplies, washers, dryers, motorcycles, commercial vehicles, servers and X-ray machines

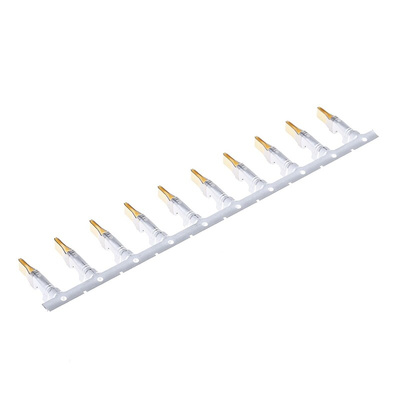

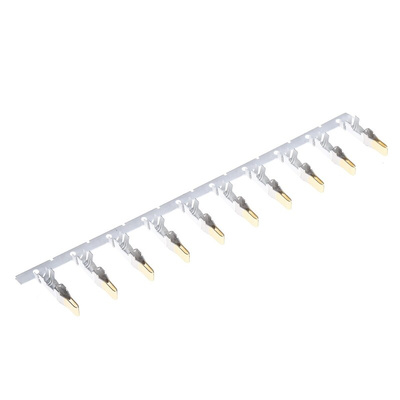

Molex Mini-Fit Sr Male Crimp Terminal, 8AWG - 42817 Series - 42817-0032

Use this high-performance crimp terminal from Molex to establish safe and secure connections to printed circuit board (PCB) headers. This terminal works by acting as the conductor link for stranded cables to be inserted into PCB jumpers. Its connectors are made of high-performance alloys (HPA) that have excellent resistance to corrosion and mechanical impact. This means the product will last a long time and can stand up to harsh environmental conditions. You'll find this terminal used for a range of applications in commercial and industrial machinery.

• Dual-beam design with four contact points for reliable conductivity
• Simple crimp termination method with low insertion force to save time and effort
• High current capacity of 50A for heavy-duty applications
• Wide operating temperature range of -40°C to +105°C for use in demanding conditions

Applications

• Commercial vehicles
• Communication server equipment
• X-ray machines

How do I insert this terminal into a housing?

First, ensure that the terminals are in the proper orientation, with the top of the crimp facing the position assurance enclosure. Insert the terminals and confirm they are fully seated by noting whether the plastic tabs drop into position. Finally, latch the terminal position assurance (TPA) securely.
