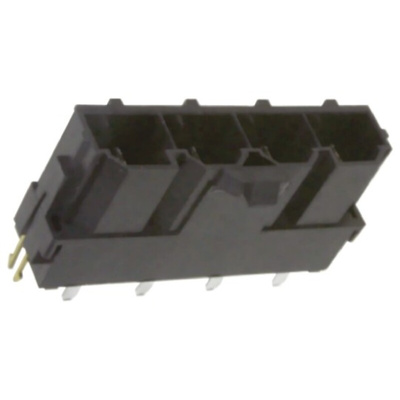

42819-4213, Molex Mini-Fit Sr. Series Straight Through Hole PCB Header, 4 Contact(s), 10.0mm Pitch, 1 Row(s), Shrouded, Штыревой разъем

7757605
Номер производителя: 42819-4213Производитель: Molex
Цена за шт.
2800.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+ −

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex Mini-Fit Sr. PCB Mount Vertical & 90° Headers

The Mini-fit Sr. Series Headers from Molex have pre-assembled male contacts and metal PCB retention clips. This range of Mini-Fit Sr. headers are Through Hole mount and are available for different PCB thickness's as shown below For Wire to Board applications the Mini-fit Sr. Series Headers can mate with Cable Receptacle Housings, see stock number 342-4106 typical.

Manufactures Part Number Key:

428xx-x2x2: Tin plated contact area
428xx-x2x3: Gold plated contact area
428xx-x21x: 1.57 mm nominal PCB thickness
428xx-x22x: 2.36 mm nominal PCB thickness
428xx-x23x: 3.18 mm nominal PCB thickness
428xx-x24x: 6.35 mm nominal PCB thickness

Molex Minifit Sr.™ Series

Техническая спецификация
pdfMiniFit Sr. Headers SD-42819-0002 Dimensional Drawing
pdfMiniFit Sr. Header Vertical 4 Pin Gold for 1.57mm thick PCB- Datasheet
pdfDatasheet
pdfLine Drawing
pdfMolex Mini-Fit Connector Datasheet
