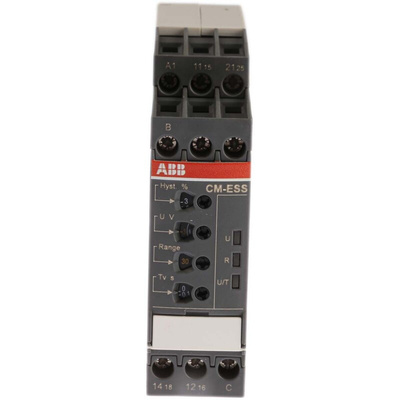

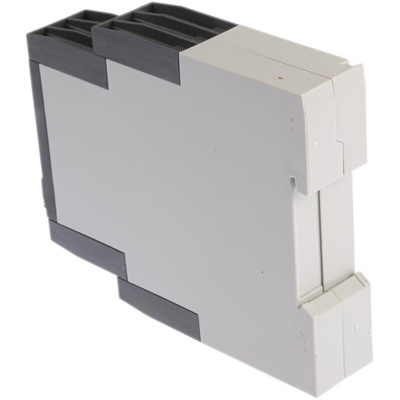

1SVR730830R0400, ABB Voltage Monitoring Relay With DPDT Contacts, 1 Phase, Overvoltage, Undervoltage, Реле контроля

7757955
Номер производителя: 1SVR730830R0400Производитель: ABB
Цена за шт.
46146.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CM-ESS Voltage Monitoring Relay - Single Phase AC/DC

Depending on the configuration, the voltage monitoring relays CM-ESS.1 and CM-ESS.2 can be used for over- or undervoltage monitoring in single-phase AC and/or DC systems. The voltage to be monitored (measured value) is applied to terminals B-C. The devices work according the open-circuit principle.

If the measured value exceeds resp. drops below the adjusted threshold value, the output relay(s) energize(s): on the CM-ESS.1 immediately, on the CM-ESS.2 after the set tripping delay TV. If the measured value exceeds resp. drops below the threshold value plus resp. minus the adjusted hysteresis, the output relay(s) de-energize(s).

Monitoring of DC- and AC-voltages from 3-600V
RMS measuring principle
One device includes 4 measuring ranges: 3-30V, 6-60V, 30-300V, 60-600V
Over- and undervoltage monitoring configurable
Hysteresis adjustable from 3-30%
Tripping delay TV adjustable 0; 0.1-30s
3 supply voltage versions
2 c/o contacts
22.5mm width
3 LED's for status indication

Техническая спецификация
pdfVoltage Monitoring Relay CM-ESS.2 Data Sheet
pdfControl Cabinet Solutions
Время задержки:
0 s, 0.1 → 30s
Высота:
85.6мм
Диапазон рабочих температур:
-20 → +60°C
Длина:
103.7мм
Конфигурация контактов:
DPDT
Максимальное измеренное напряжение:
30 V, 60 V, 300 V, 600V
Программы мониторинга:
Напряжение
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Размеры:
103.7 x 22.5 x 85.6mm
Чувствительность по напряжению:
Повышенное напряжение, Пониженное напряжение
Ширина:
22.5мм
Электрическая фаза:
1
