Schaffner 2.4A, 250 V ac Male Flange Mount IEC Inlet Filter 2 Pole FN283-2-06, Faston 1 Fuse, Фильтр

FN280 Series

The FN280 power entry module combines an IEC inlet, a mains filter with single or dual- fuse holder and a 2-pole rocker switch in a small form factor. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Can be used in a wide range of applications such as portable electrical and electronic equipment, consumer goods, EDP & office equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.

Complies with IEC/EN 60601-1
Rated currents up to 10 A
Single or dual-fuse holder
2-pole rocker switch
Optional earth line choke (E type)
Optional medical versions (B type)

Schaffner Fuse Inlet Filter

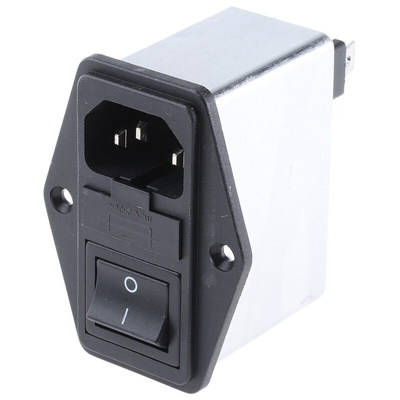

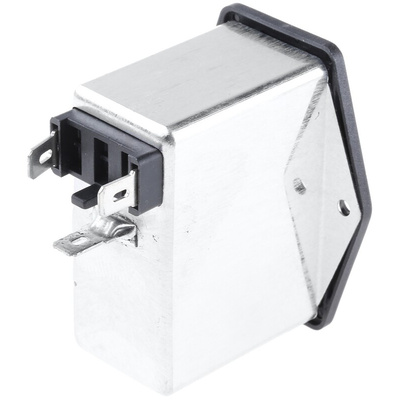

The Schaffner IEC inlet filter is a male type, single fuse, flange mount, power entry module with C14 connector. It has a supply voltage rating of 250VAC with a high-performance current rating of 2.4A. This filter has a built-in metal housing with an integrated power line connector. The operating frequency ranging between 50Hz and 400Hz.

Features and Benefits

Excellent performance/size ratio
Fuse drawer with easy access
Fast-On terminals
Maximum leakage current is 373μA
Operating temperature ranging between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Rack mounting equipment

Certifications

UL approved
CSA certified
IP40 rated

Schaffner FN28X Series

Datasheet
