Schaffner 10A, 250 V ac Male Flange Mount IEC Inlet Filter FN9260-10-06, Faston 2 Fuse, Фильтр

Double Fused FN9260B IEC 950 Compliant

Lightweight construction
Designed for one or two fuses

Note

Fuses not included

Warning

Neutral line must not be fused where it is referenced to earth.

Approvals

UL recognised component, CSA certified, VDE, SEMKO

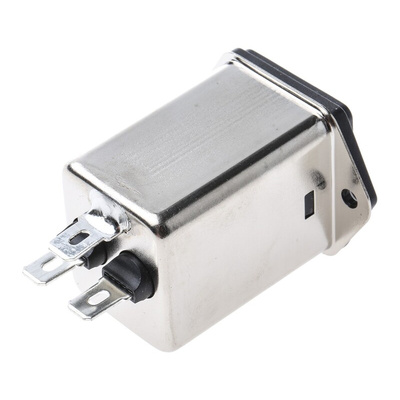

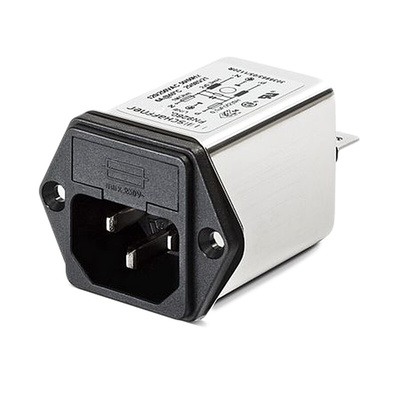

Schaffner Dual Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, dual fused, flange mount power entry module. It has a voltage rating of 250VAC with 10A high-performance current rating. The power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities. The operating frequency of this filter ranges between 50Hz and 60Hz.
Schaffner medical FN92XXB and FN28XB series
IEC inlet plugs with integral mains filter are designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 (1/4in) receptacles. Low earth leakage current. IEC 950 compliant.
Note:
Fuses are not included
Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Lightweight, highly-integrated module
Fuse drawer with easy access
Fast-On terminals
Maximum leakage current is 373μA
Operating temperature ranges between -25°C and 85°C

Applications

Electrical and electronic equipment
Medical equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment.

Certifications

UL approved
CSA certified
VDE
IP40 rated

Schaffner Medical FN92XXB and FN28XB Series

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically stock no. 526-0724).,Low earth leakage current. IEC 950 Compliant.
