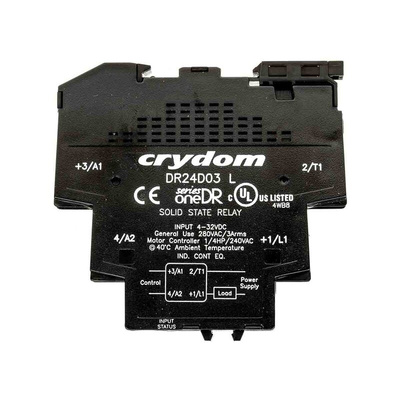

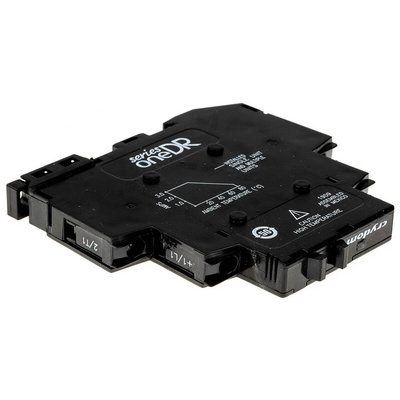

Sensata / Crydom DR24D03 Series Solid State Interface Relay, 32 V dc Control, 3 A Load, DIN Rail Mount, Реле

DIN Rail Mounting - SeriesOne DR SSRs

Zero voltage and random switching options available
Ratings of 3, 6 & 12 Amps
Load voltage ratings of 2 → 60 Vdc, 2 → 100 Vdc, 24 → 280 Vac and 48 → 600 Vac
Fits standard 35 mm DIN rail
LED input status indicator
AC or DC control voltages
100K-cycle UL 508 endurance rating for enhanced reliability

Approvals

UL, cUL, CE

Sensata | Crydom Solid-State Interface Relay, 0.15 to 3A Rated Load Current, 24 to 280V AC Operating Voltage Range - SeriesOne DR Series - DR24D03

Use this solid-state interface relay from Sensata | Crydom to open and close an electrical circuit. By automatically interrupting the power supply in the event of a fault, it protects devices from damage caused by overcurrent and short circuits. The wide operating voltage range between 24 and 280V AC means it's compatible with a broad range of setups. You'll find a relay like this one used in applications such as lighting control systems, production lines and power distribution units.

Features & Benefits

• Compact dimensions of 87.6 (L) x 11 (W) x 83.7 mm (H) to add minimal bulk to your system
• Screw terminals for fast and straightforward setup
• Snaps onto a DIN rail for tool-free installation

What's the operating temperature range of this device?

This device has a wide operating temperature range between -30°C and +80°C, so you can safely use it in demanding environments.

What's the benefit of a solid-state relay versus an electromechanical one?

Unlike electromechanical relays, solid-state relays have no moving parts, so there's less chance of failure and a reduced need for maintenance.

Crydom Solid State Relay and Accessories

SeriesOne DR Series Data Sheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - DR24D03

Line Drawing - DR24D03
