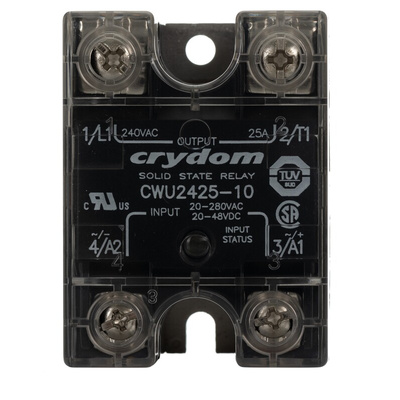

CWU2425-10, Sensata / Crydom CW24 Series Solid State Relay, 25 A Load, Panel Mount, 280 V ac Load, 48 V dc, 280 V ac Control, Реле

Sensata | Crydom Solid-State Relay, 25A Rated Load Current, 24 to 280V AC Operating Voltage Range - CW24 Series - CWU2425-10

Take charge of your industrial machinery with this solid-state relay from Sensata | Crydom. It makes or breaks electrical circuits for the automated control of your equipment. As the component has no moving parts, the risk of wear and tear is minimal, so it's maintenance-free. This hardy device withstands temperatures of -40°C to +80°C, so it holds up in harsh work areas. Units like this one are commonly found in robotics, motor control and digital data acquisition.

Features & Benefits

• MTBF of over 11 million hours at +40°C for long-lasting performance
• Removable cover has an IP20 rating, so it's finger-safe and protected against objects larger than 12mm
• Light weight of 81.53g to place minimal strain on your setup

What's this unit's current rating?

It has a rated load current of 25A, so it's just the thing for use in high-power applications.

How quickly does this SSR switch on and off?

It has a maximum turn-on time of 20ms and a maximum turn-off time of 30ms, so it switches in the blink of an eye.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CW Series
