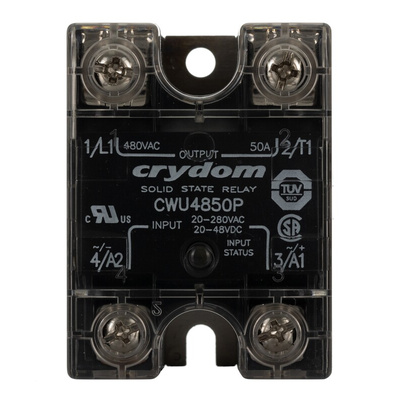

CWU4850P, Sensata / Crydom CW48 Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 48 V dc, 280 V ac Control, Реле

Sensata | Crydom Solid-State Relay, 20ms Maximum Turn-On Time, 4000V Dielectric Strength - CW48 Series - CWU4850P

Keen for a hassle-free way to control electrical circuits? This solid-state relay from Sensata | Crydom lets you take charge of switching operations in your machinery. It makes or breaks a circuit without any moving parts, so there's no need to worry about mechanical wear or maintenance. Thanks to its wide operating temperature range between -40°C and +80°C, you can rest easy knowing it keeps its cool in challenging conditions. You'll find SSRs like this one used in I/O subsystems, IC equipment and medical technology.

Features & Benefits

• Removable cover has an IP20 rating, so it's touch-proof and protected against tools and wires larger than 12mm in size
• Rated load current of 50A means it can handle demanding electrical loads
• Light weight of just 81.53g to place minimal strain on your setup

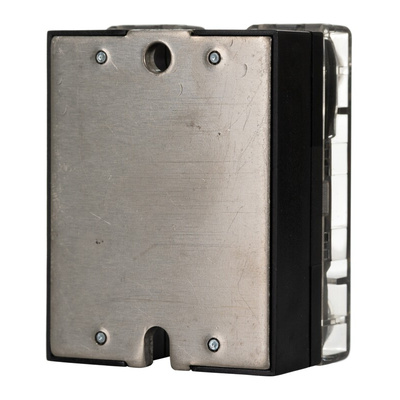

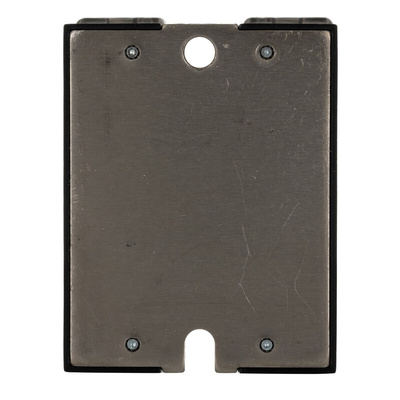

• Aluminium baseplate resists corrosion and impact to maintain optimal performance

Does this SSR accept DC inputs?

Yes. For versatility, this SSR has a control voltage range of 20 to 48V DC and 20 to 280V AC, so you can use it with different electrical sources.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Brochure - Panel Mount Solid State Relays

Line Drawing - CWU4850P
