Martindale, Model PC105/32 Socket Tester 32A CAT III 300 V

PC105 3 Phase Industrial Socket Tester

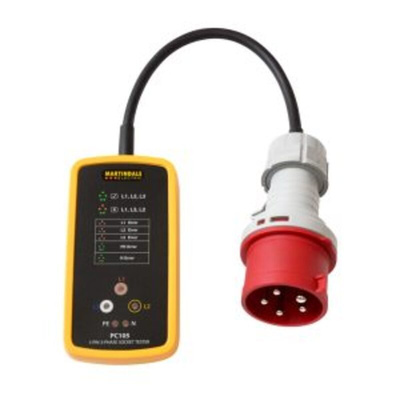

The PC105 is a 3 phase socket tester designed to quickly check for the presence of phase, phase sequence, neutral and PE in 5 pin, 16A, 32A and 63A sockets.

This device includes a five-pin socket for connection to compatible sockets which is attached via a cable to the main body of the socket tester
Once it's connected up the device will evaluate phase presence, phase sequence, neutral and PE presence and display the results as coloured LED indicators
The device includes a handy guide on the front that shows the different possible LED indications
L1, L2 and L3 are present
L1, L2 and L3 are missing, PE present
L1 error
L2 error
L3 error
PE error
N error

Martindale Socket Testers

The Martindale 3-phase industrial socket tester is a state-of-the-art device with a current rating of 32AC and detecting voltage ranging between 380VAC and 415VAC. It checks for incorrect wiring, phase presence, PE presence, and neutral presence. This device includes a socket for connection to compatible sockets, attached via a cable to the main body of the tester.

Features and Benefits

Configuration of 5-pin
Condition checks of 7 wiring
Phase sequence indication
Neutral/earth check
Class II double insulation
Power supply from mains
Front panel display
Frequency is 50Hz

Applications

Electrical systems
Commercial

Certifications

BSEN 61010-1
BSEN 61326-1
CAT II 300V
