A9XPH224, Schneider Electric Acti 9 2 Phase Busbar, 415V ac, 18mm Pitch

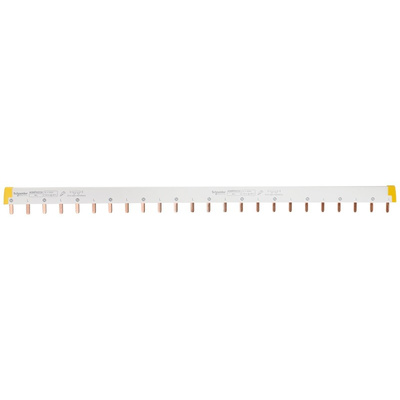

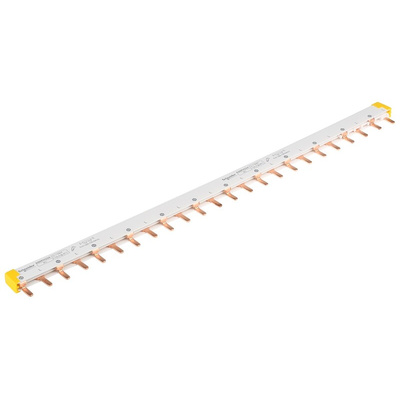

Schneider Electric 2-Phase Bus Bar, 18mm Pitch, 24 Modules - iC60 Series - A9XPH224

Energise your switch disconnectors with this bus bar from Schneider Electric. Designed for two-phase electrical components, the unit has 24 modules to link the live and neutral terminals of up to 12 devices. It has a wide connector pitch of 18mm, which means switches are spaced apart safely to prevent short circuits. This bus bar is fire-resistant in temperatures of up to +960°C for 30 seconds, so it's suitable for use in hazardous environments. You'll commonly find it in industrial automation applications.

• Metal material for good conductivity and reliable connections
• Current rating of 100A for large-scale applications
• Width of 430mm can be cut down to fit smaller setups
• Insulated to prevent electric shocks
• IP20 (ingress protection) rating (with end-pieces and tooth covers) means it's touch-proof and shielded from objects over 12mm wide

Applications

• Process and packaging equipment
• Control panels
• Material handling machinery

How does this bus bar work?

This bus bar functions as a power extension device. You can connect switches to any point on its length, so different devices can share energy from the same power source.
