A9XPH324, Schneider Electric Acti 9 3 Phase Busbar, 415V ac, 18mm Pitch

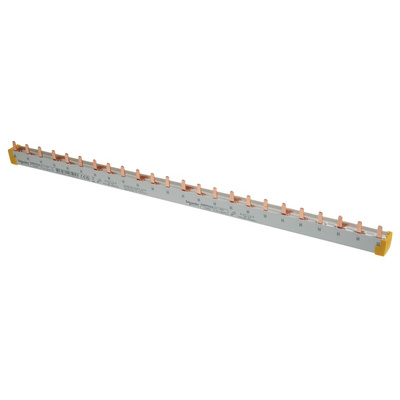

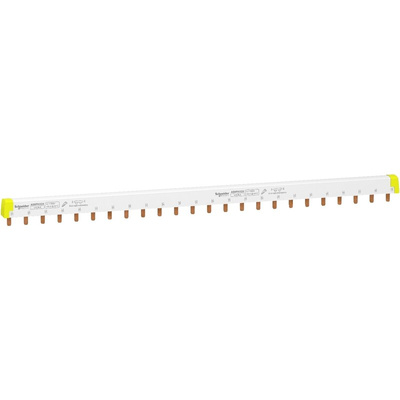

Schneider Electric 3-Phase Comb Busbar, 415V AC, 18mm Pitch - Acti9 Series - A9XPH324

Connect switchgear easily with this user-friendly busbar from Schneider Electric. It's suitable for use in low-voltage switchboards and is designed to offer an optimal customer experience. Prefabricated connections cut down on assembly time and the unit can be installed in one simple operation. The busbar is fully insulated to reduce the risk of electrical shock and includes protective end caps for improved safety. Clip-on covers add a further level of protection and are easily cut to allow connections to pass through to the switchgear.

Features & Benefits

• Fire-resistant to reduce the chance of an electrical fire causing a safety hazard
• Optional mounting locations that include either the top or bottom of tunnel-type and double terminals
• IP20 (ingress protection) rated when used with end-caps for protection against touch and objects larger than 12mm

Applications

• Power transformers
• Rail industry
• Industrial lighting systems
• Automated production lines

What is switchgear used for?

Switchgear is used in an electric system to power off equipment so maintenance work can be done or downstream faults cleared. Switchgear components include electrical disconnect switches, fuses and circuit breakers. Together these devices control, protect and isolate electrical equipment.
