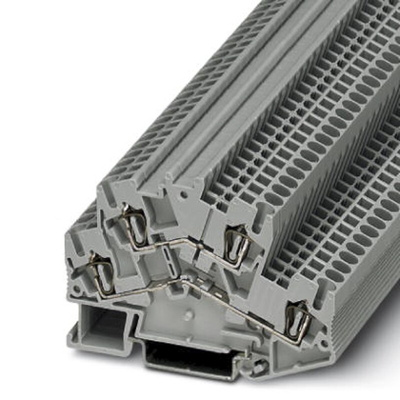

3038464, Phoenix Contact STTBS 2.5 Series Grey DIN Rail Terminal Block, Double-Level, Spring Clamp Termination

Phoenix Contact DIN Rail Terminal Block, Shock Resistant, 22A Current Rating - STTBS 2,5 - 3038464

Use this DIN rail terminal block from Phoenix Contact to protect electronic devices on your DIN rail from short circuits and current overload. The double-level unit features four connections so you can use it to house multiple wires at once. A nominal current rating of 22A makes this a safe choice for high-powered industrial systems.
As it comes with mechanical shock protection, you can use it in demanding operations without the risk of the wires dislodging. For versatility, the terminals can accommodate wires ranging in size from 28 to 12AWG.
This terminal block comes with finger and back-of-hand protection, which lets you easily set it up without the risk of electric shocks. A bending test rotation speed of 10rpm means it can withstand mechanical stress with minimal risk of wear.

Features & Benefits

• PA insulation helps prevent electric hazards
• Flammability rating of UL 94 V0 means fire will stop in 10 seconds to stop flames from spreading
• Spring clamp terminal design helps maintain stable wire connections
• ATEX-certified for safe use in hazardous environments
• Wide operating temperature range between -60°C and +105°C to withstand harsh environments

TB Series

Feed-Through Terminal Block

Instruction Sheet - 3038464

Line Drawing - 3038464
