3044542, Phoenix Contact UT 2.5-QUATTRO Series Grey DIN Rail Terminal Block, Single-Level, Screw Termination

TB Series

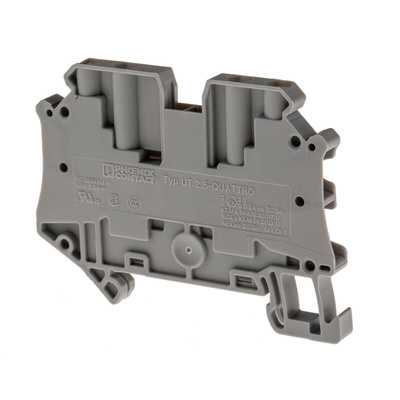

Phoenix Contact DIN Rail Feed-Through Terminal Block (Grey), 26 to 12 AWG - UT 2.5-QUATTRO - 3044542

When termination of wires or cables mounted along a DIN rail is called for, choose this terminal block from Phoenix Contact. It will help protect your electrical equipment from overcurrent and short-circuiting.
This single-level feed-through block has a low profile and allows for easy distinction between connections. The plastic material helps to insulate the electrical current running through the terminal, increasing safety for you and your equipment. Thanks to its screw termination method, this block ensures connections are secure and reliable.
DIN rails are part of a global industry standard mounting system, making this product compatible with a wide range of components. Common applications include machine building, plant engineering and industrial processing. This block has also been tested for use in railway applications.

• Width of 5.2 mm
• Cross section of 0.14 mm² to 4 mm²
• Current rating of 30 A
• Voltage rating of 500 V
• Wire size of 26 to 12 AWG
• NS 35/7.5 and NS 35/15 mounting types
• Screw termination method
• Grey housing colour

TB Series

Feed-Through Terminal Block
