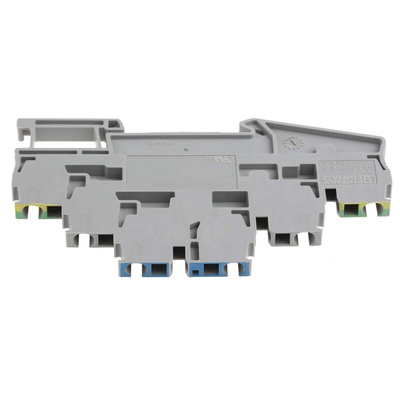

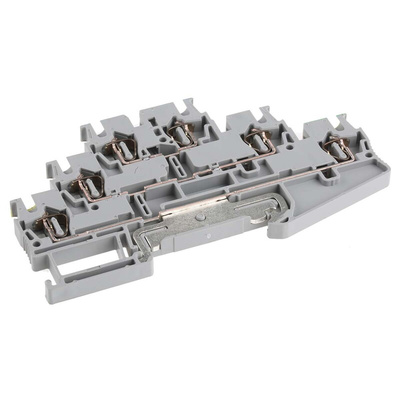

3036084, Phoenix Contact ST 2.5-PE/L/N Series Grey DIN Rail Terminal Block, Triple-Level, Spring Clamp Termination

TB Series

ST 2,5 Spring cage terminal blocks - 3036084

Phoenix Contact brings you the ST range of spring-cage terminal blocks that are 6-position blocks. These blocks allow cross-connection to any number of terminal blocks with the consistent FBS (plug-in bridge system) and because of the compact distributors, the double connection allows for six conductors to be connected on one potential. The 3031306 is made from a grey polyamide, has a nominal voltage of 500 V (current of 22 A) and can accept cable from 28-12 AWG.

Spring-cage terminal blocks save you time over conventional screw-in blocks. The wire will still need to be stripped to a specific length, however, he spring-cage clamp will hold the wire in place, meaning you don't have to screw in multiple wires.

Features and benefits:

• FBS plug-in bridge systems enable further power distribution variations


• Useable as a compact power distributor


• Four wires on one potential through twin connection


• Mounts onto an NS 35/7.5 or NS 35/15 DIN rail

Applications:

• Railway industry


• Machine building


• Plant engineering


• Process industry

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.
