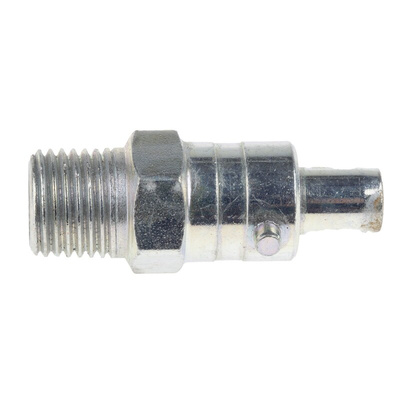

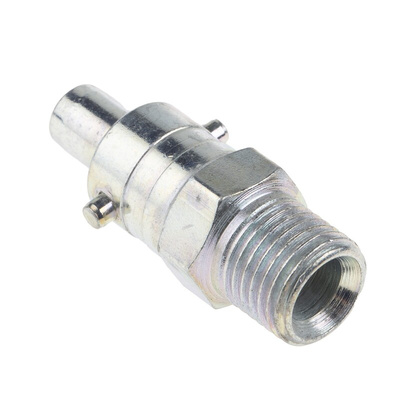

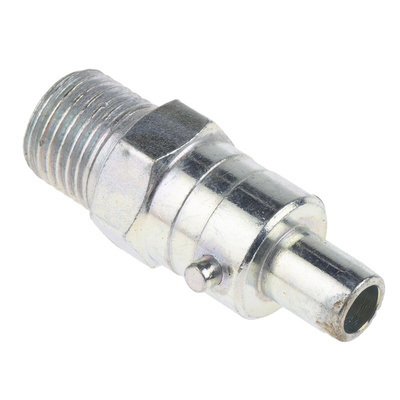

RS PRO Steel Male Pneumatic Quick Connect Coupling, G 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Steel 1/4 in Threaded

This pneumatic quick connect coupling from the reliable RS PRO range provides a secure connection for most compressed-air applications. It's a single shut-off coupling with a G standard 1/4 in male thread. It has a PCL-made fitting that attaches quickly to a hose or air tool by pulling back the collar on the corresponding female connector. It features a positive connection with a bayonet head to prevent accidental disconnection.

The Instantair adaptor is made from zinc-plated steel for corrosion resistance. It's designed to ensure maximum efficiency, with a coupling that features a positive seal to allow zero leakage. The coupling will operate up to a maximum pressure of 35 bar and a maximum temperature of +100˚C, and down to a minimum temperature of -20˚C.

Compressed air is used in a wide range of industrial applications, including heating, ventilation and air conditioning (HVAC) control systems, sandblasting and injection moulding.

Features and Benefits

• Pneumatic quick connect coupling
• G thread standard
• 1/4 in threaded connection
• Male thread
• PCL-branded coupling is quick releasing
• Male coupling
• Bayonet head prevents accidental disconnection
• Maximum operating pressure 35 bar
• Maximum operating temperature of +100˚C
• Minimum operating temperature of -20˚C
• Zinc-plated steel resists corrosion
• Nominal bore of 5.6 mm
• Manufacturer series AA
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
