700-CF400EJ, Allen Bradley 700C Series Contactor, 24 V dc Coil, 4-Pole, 25 A, 4NO, 690 V ac, Контактор

Allen Bradley 700-CF IEC Coil Operating Voltage Control Relay, 24 V dc

Ensure improved safety, efficiency, and reliability for your circuit with the Bulletin 700-CF IEC Control Relays by Allen Bradley. These control relays offer features required for demanding industrial safety system applications such as mechanically linked contacts, timing options, and long contact life in an IEC design.

These units have a contact rating of 25 A (AC1) and a maximum rated voltage of 690V. Dimensions are: H 80.5mm, W 45mm, D 81mm. They have high contact reliability and incorporate environmentally friendly materials. They can be DIN rail or surface mounted. They can also use the same accessories as the Bulletin 100-C series.

Features and Benefits:

• Ideally suited for demanding heavy-duty industrial applications
• Mechanically linked contact performance per IEC 60947-5-1
• Gold plated, bifurcated version for low level switching applications
• 4 to 10 poles
• High contact reliability
• Electronic and pneumatic timing modules
• Environmentally friendly materials
• Space saving coil modules

Certifications:

CE, cULus, CCC

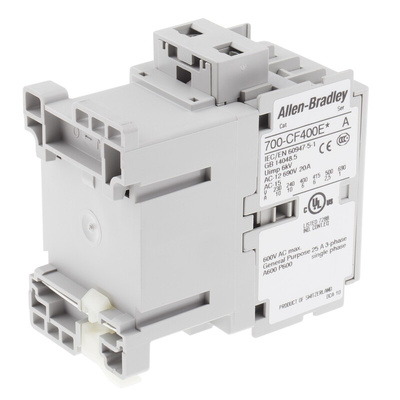

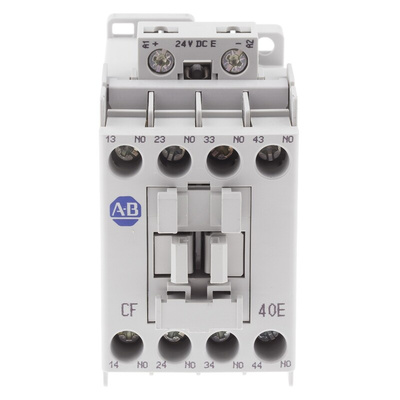

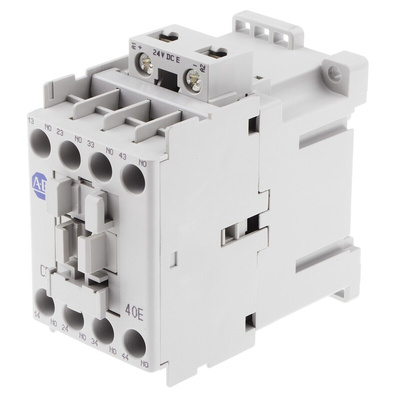

700-CF400EJ Safety Contactor

The IEC 700-CF400EJ unit is an industrial Safety Contactor with 4-Pole DC Coil Voltage. It has screw terminals and 4NO contact configuration. The control voltage is 24 V dc, Electronic coil.

What is a contactor?

Much like relays, a contactor is an electromagnetic device which is designed to switch electrical current through its contacts. It can switch a larger amount of electrical power than normal relays and can therefore be used for more heavy-duty, larger-scale applications, such as switching several different circuits simultaneously. It can also be controlled remotely and can be used for logic controlling to serve different functions, such as turning on some things at the same time as turning off others. Contactors feature high coil voltages and are able to switch more than 15 amperes, and they also have more input and output options than relays. They are frequently used to manage electric motors and lighting systems. They contain a coil or electromagnet which opens or closes the contacts when the electrical current passes through the contactor.

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

700 Series Control Relays Data Sheet

Bulletin 700 Relays Technical Data
