700S-CF530EJC, Allen Bradley 700S-CF Series Contactor, 24 V dc Coil, 8-Pole, 25 A, 2NO + 2NC, 3NO + 1NC, 690 V ac, Контактор

Allen Bradley 700S-CF 8 Pole Safety Control Relay - 5NO/3NC

For a safer and more efficient control circuit, the 700S-CF Safety Control Relay by Allen Bradley is the perfect solution.

The 700S-CF contactors have mechanically linked, positively guided contacts, which are necessary for modern feedback circuits in safety applications. This feature ensures detection of a welded contact condition. The positively guided NC auxiliary contacts do not change their state if NO contact welds. These reliable contactors have a red protective covering to ensure easy identification and defend against tampering and manual operation. The cover also displays the IEC 60947-5-1 mechanically-linked symbol. The Bulletin 700S-CF series is expertly designed with these special features to provide reliable, safe switching.

Features and Benefits:

• Mechanically linked/positively guided contacts as per IEC 60947-5-1
• Front mounted aux contact block which is permanently fixed
• SUVA Third-Party certification
• Mechanically linked contact symbol on front face
• Anti-tamper protective cover prevents manual operation, however the window allows visible ON/OFF status
• Highly visible red cover for easy identification of the safety unit
• Redundant contactors to isolate motor (hazardous motion)
• AC and DC operating coils

Note: DC versions incorporate a diode protection circuit

Certifications:

CE certified
CSA certified
UL listed
SUVA certified
VDE0660
IEC 60947-5-1
EN50011
EN50005
EN50022

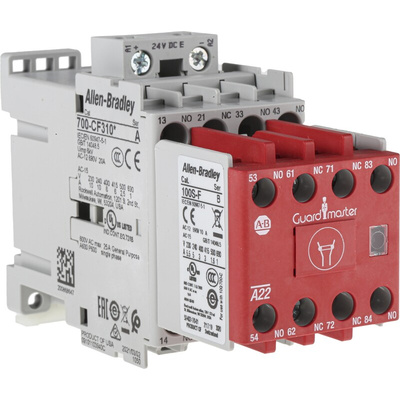

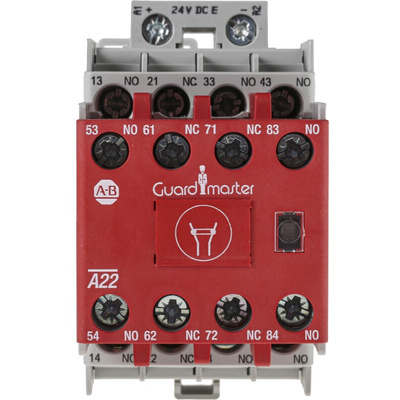

700S-CF530EJC Safety Contactor

The 700S-CF530EJC unit is an 8-Pole Safety Contactor with 24 V dc Electronic Coil voltage. The base contact configuration is 3NO/1C, and the front auxiliary contact configuration is 2NO/2NC. The current rating is 25 A.

What is a contactor?

Much like relays, a contactor is an electromagnetic device which is designed to switch electrical current through its contacts. It can switch a larger amount of electrical power than normal relays and can therefore be used for more heavy-duty, larger-scale applications, such as switching several different circuits simultaneously. It can also be controlled remotely and can be used for logic controlling to serve different functions, such as turning on some things at the same time as turning off others. Contactors feature high coil voltages and are able to switch more than 15 amperes, and they also have more input and output options than relays. They are frequently used to control electric motors and lighting systems. They contain a coil or electromagnet which opens or closes the contacts when the electrical current passes through the contactor.
