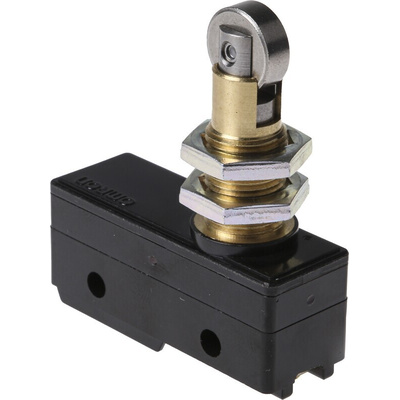

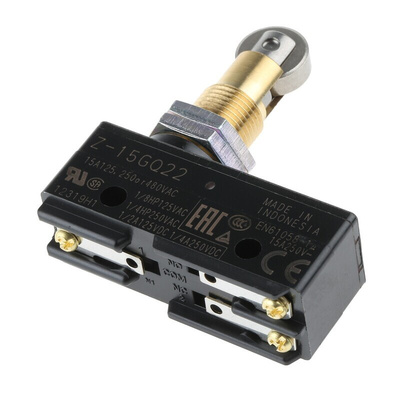

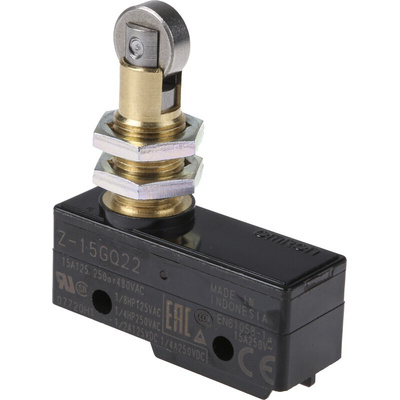

Z-15GQ22, Omron Z Series Roller Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

Omron Limit Switch, IP00, 15A Maximum Current - Z-15GQ22

This Omron limit switch with roller plunger is a high performing and versatile component designed for automation, electronics, and mechanical applications. With a durable construction and reliable functionality, this limit switch offers precise control capabilities to enhance operational efficiency.

Features & Benefits

• Snap action technology for quick and reliable response
• Roller plunger design for smooth actuation
• Solder connection type for secure electrical connections
• Thermosetting resin housing for robust protection
• IP00 rating for dust and intrusion protection
• High current capacity ideal for various industrial applications
• Long mechanical life span of 20,000,000 operations
• SPDT pole and throw configuration for flexible application compatibility

Applications

• Ideal for use in automated machinery for position sensing
• Suitable for control systems in industrial settings
• Used in safety circuits for emergency stop functions
• Effective in monitoring and controlling motor operations

Can it withstand high operating temperatures?

Yes, the Omron limit switch can operate at temperatures up to +80°C.

Will it provide accurate feedback for position control?

Yes, the snap action and roller plunger design ensure precise actuation for reliable position sensing.

Is it suitable for industrial automation applications?

Yes, the high current capacity and long mechanical life make it perfect for industrial automation systems.

Can it be easily integrated into existing control systems?

Yes, the Omron limit switch is designed for seamless integration into various control setups.

Does it require special maintenance or calibration?

No, this limit switch is maintenance-free and does not require calibration, ensuring hassle-free operation.
