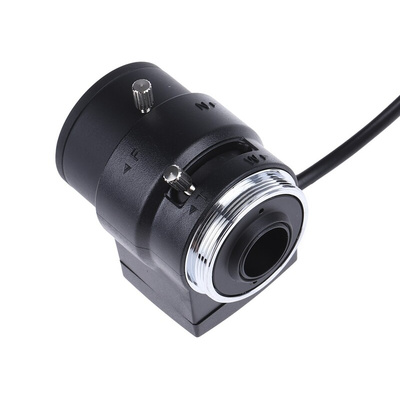

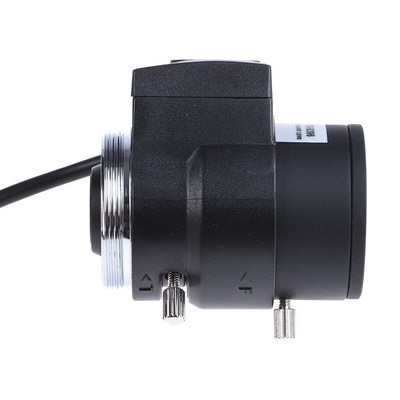

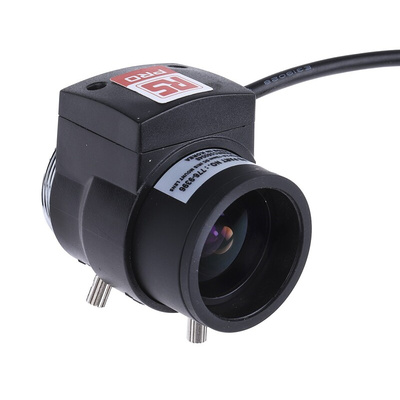

RS PRO Direct Drive CCTV Lens, 2.8 mm – 12 mm Focal Length

Looking for an effective lens for your CCTV camera? RS PRO’s direct-drive camera lens helps you extend the field of view so you can enhance security at home or on business premises.

You might want to use this lens if your camera is in an awkward position or you need to improve the field of view. This direct-drive CCTV lens offers between 2.8 mm and 12 mm in focal length, a back focal distance ranging from 9.75 mm to 20.46 mm and a maximum angle of view of 134° to 32° (in 1/3-inch format). It's easy to mount on a camera and optimised for light sensitivity.

The direct-drive lens uses a DC motor or electronic amplifier to control the opening and closing of the lens iris. It's compatible with the WDR 3D-DNR CCTV camera and is suitable for indoor and outdoor use.

Features and Benefits

• Direct drive iris
• Back focal length of 9.75 mm – 20.46 mm
• Aperture of F 1.4 – 360
• Format 1/3 in, 1/4 in
• Focal length of 2.8 mm – 12 mm
• Angle of view: 1/3 in 134° – 32°/99.8° – 25°/72.5° – 18.7°
• Angle of view: 1/4 in 92.7° – 23.4°/72.5° – 18.8°/53.5° – 14°
• Dimensions of 34.4 mm (H) x 61 mm (L)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
