S8VK-G01524, Omron S8VK-G DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 650mA Output, 15W, Блок питания

S8VK-G Series Standard Single Phase Switch Mode Power Supply 15W to 480W

S8VK-G Series of standard Single Phase, switch mode power supplies are hard wearing, compact, easy to use and are excellent working in tough environments. The S8VK-G has a compact design, safe, reliable, easy to mount, simply click onto a standard DIN Rail. The S8VK runs in stable conditions for a long time over wide temperature ranges -40°C to 70°C. Excellent resistance to vibration thanks to the DIN Rail mounting clip, two sets of DC output terminals. International safety standards including, marine applications, this power supply is provides it all. The compact S8VK-G power supply provides high-power density in a compact design with reduced costs thanks to minimum wiring requirements.

Features and Benefits.

•Compact power supply
•Single phase
•Switch mode
•Quick and easy installation
•Easy click attachment to DIN Rails
•High resistance to tough environments
•Safe
•Reliable
•Excellent vibration resistance
•2 sets of DC output terminals
•High-power density reduced costs
•Minimal wiring required
•Run for long periods within stable environments
•International safety standards including marine applications
•Universal input for international applications 100 V ac to 240 V ac.
•Temperature range -40°C to 70°C
•Power boost function at 120%
•RoHS compliant

Power Ratings Available.

15 W to 480 W

Output Voltages Available.

5 V dc to 48 V dc

What is a DIN Rail Mounted Power Supply?

A DIN Rail is a standard type of rail that is used to mount the power supply into racks. DIN Rails are a support for equipment. DIN Rails are normally made from aluminium but if there is a chance that the power supply suffers any shock or vibration, use a steel DIN Rail.

What is A Switch Mode Power Supply?

Switch mode power supplies are a general purpose power supply include a switching regulator converting AC mains power to a lower voltage DC. A Switch mode power supply is efficient limiting any wasted energy.

What is Single Phase?

A single phase power supply is simply a power supply that provides alternating current electric power within systems where the voltages are different. A single phase system normally has one neutral and power wire and the current passes between the 2 wires.

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and mounting clip ensuring vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Storage temperature range is -40°C to 80°C with no condensation or icing.
Storage humidity 0% to 95%.

Standards

UL508/60950-1,CSA C22.2 No. 107.1/60950-1,ANSI/ISA 12.12.01, EN50178, EN60950-1, EN61558-2-16, EMS: EN 61204-3, EMI: EN61204-3 Class B, EN 60204-1 PELV, 15 W/30 W/60 W models conform to UL Class 2 Output Standards.

Approvals

RoHS Compliant

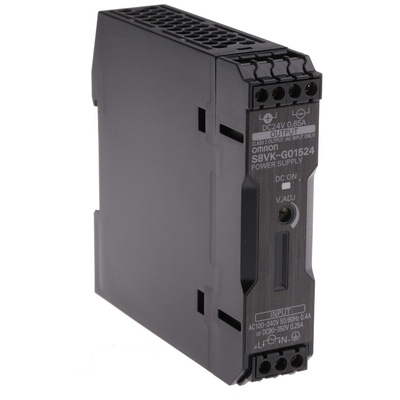

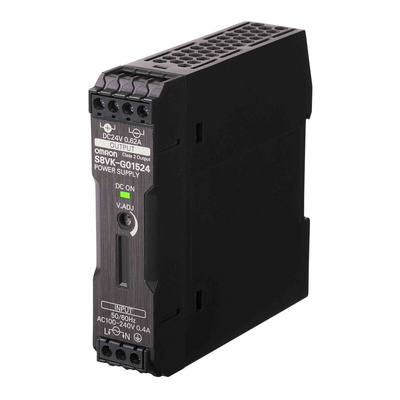

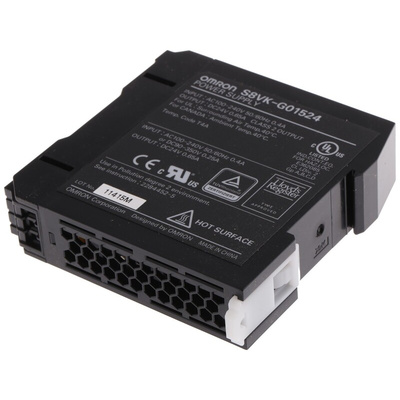

Omron S8VK-G Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - S8VK-G01524

This DIN rail power supply by Omron is an industrial grade power supply that provides a reliable and efficient solution for automation, electronics, and electrical applications. With a power rating of 15W, power supply offers a single output of 24V DC. It is a switch mode power supply that is designed for easy installation, compact design, and tough environmental conditions.

Features & Benefits

• Provides a single output of 24V DC, suitable for various applications
• Switch Mode Power Supply for efficient operation
• Compact DIN Rail Mount design for easy installation
• Reliable performance in tough industrial environments
• Meets safety standards for secure operation

Applications

• Ideal for automation systems requiring a stable power supply
• Suitable for electronics and Electrical equipment requiring a 24V DC input
• Used in mechanical industries for powering control systems
• Reliable power source for industrial machinery and equipment

Can it be used in harsh environmental conditions?

Yes, the Omron DIN rail power supply is designed to withstand tough industrial environments.

Will it provide a stable 24V DC output for automation systems?

Yes, the power supply ensures a reliable and stable 24V DC output for automation applications.

Is it suitable for use with electronics and electrical devices?

Yes, the power supply is an industrial-grade solution for electronics and electrical equipment.

Can it be easily mounted on a DIN rail?

Yes, the compact design allows for easy installation on a DIN rail for convenient setup.

Is the power supply reliable for continuous operation?

Yes, the Omron DIN rail power supply delivers dependable performance for uninterrupted operation.
