MEAN WELL Switching Power Supply, RSP-200-12, 12V dc, 16.7A, 200W, 1 Output, 124 → 370 V dc, 88 → 264 V, Источник питания

Mean Well Switch Mode Power Supply

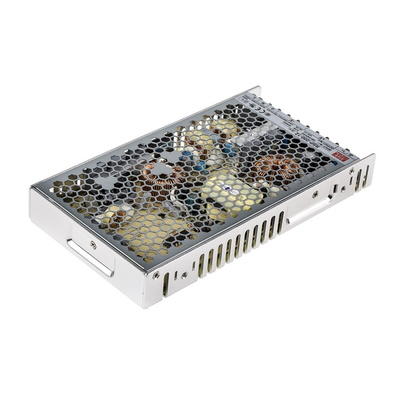

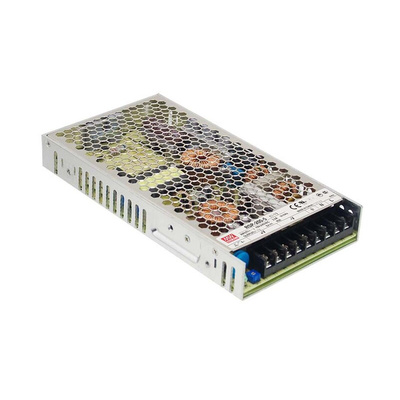

The Mean Well RSP-200 series 200.4W single output AC to DC embedded switch mode power supply has an output current rating of 16.7A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 124VDC to 370VDC. Its smaller size makes it ideal for users who require energy saving, no noise, low cost and have limited space for installation.

Features and Benefits

Built in active PFC function and PF is less than 0.95
high-efficiency up to 89%
Protections for short circuit
Overload protection
Overvoltage and over temperature protection
Cooling by free air convection
Low profile 30mm design for 1U installation
LED indicator for power on
Operating temperature ranging between -30°C and 70°C
Chassis mount

Applications

Industrial automation systems
Mechanical
Electrical industry
Instruments
LED displays

Certifications

EN60950-1
UL60950-1
TUV approved
EN55032 (CISPR32) class B
EN61000-3-2,-3,GB9254 class B
GB17625.1
EN61000-4-2,3,4,5,6,8,11
EN55024
Criteria A

RSP-200 Series specification sheet

Declaration Of Conformity
