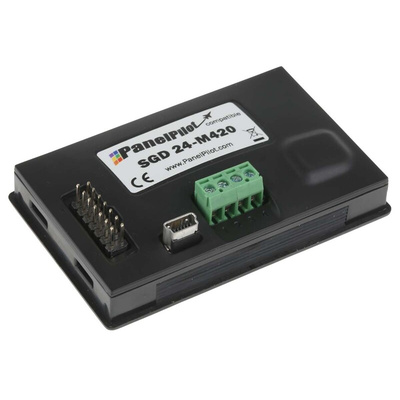

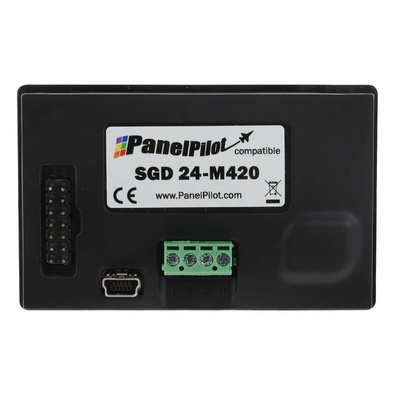

SGD 24-M420, Lascar PanelPilot , TFT Digital Panel Multi-Function Meter for Current, 46mm x 74mm, Многофункциональный измеритель

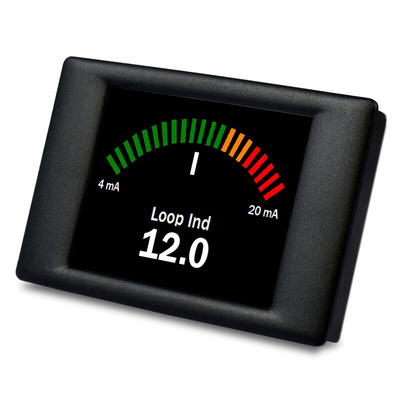

Lascar Smart Graphics Display-Current Loop Indicator

The Lascar PanelPilot series 2.4in smart graphics display-current loop indicator has a 320 x 240 pixels(QVGA) colour display and USB programming interface. By using the PanelPilot software (available for Windows 7, 8.1 and 10), users can choose from an increasing number of voltmeter types that can be customised as per their needs. The user can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection. Once programming is complete, you can save all selections to the meter and computer, detach the unit and mount in their panel as they would any standard display.
Panel Pilot Software
Panel Pilot software is available for download free of charge from the web.
Easy to install and use, the control software runs under Windows XP (Home and Professional Editions), Vista and Windows 7.
The software is used to set up the appearance and operation of the meter and then upload these settings to the meter.

Features and Benefits

Current measurement ranges from 4mA and 20mA
Operating voltage is 4VDC to 30VDC
Accuracy is 0.05%
Use PanelPilot software, to setup and customise the display
Multiple voltmeter configurations included for free
pixels resolution TFT display with touch screen technology
Programmable via the USB interface
Simple panel mounting solution
Digital hold
Cut-out height of 46mm, width of 74mm and depth of 16.4mm
Operating temperature ranges between 0°C and 40°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified

VIDEO - Touch screen TFT meters

Datasheet

Brochure

Quick Start Guide
