SGD 24-M-IP, Lascar PanelPilot , TFT Digital Panel Multi-Function Meter for Voltage 33mm, Многофункциональный измеритель

Lascar Smart Graphics Display

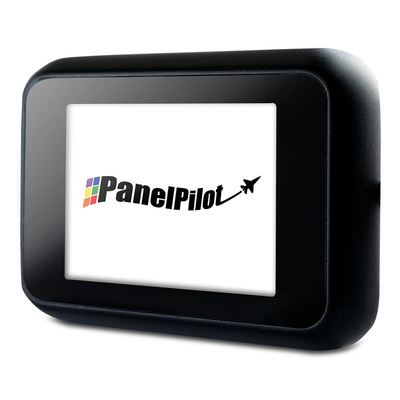

The Lascar PanelPilot series 2.4in smart graphics display has a 320 x 240 pixels(QVGA) colour display and USB programming interface. By using the PanelPilot software (available for Windows 7, 8.1 and 10), the user can choose from an increasing number of voltmeter types, that can be customised as per their needs. The user can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection.
Panel Pilot Software:
Panel Pilot software is available for download free of charge from the web.
Easy to install and use, the control software runs under Windows XP (Home and Professional Editions), Vista and Windows 7.
The software is used to set up the appearance and operation of the meter and then upload these settings to the meter.

Features and Benefits

Voltage measurement ranges from 0VDC and 40VDC
Current measurement ranges from 4mA and 20mA
Rugged and scratch resistant Corning® Gorilla® glass window
Programmable with the USB interface
Simple and easy panel mounting solution

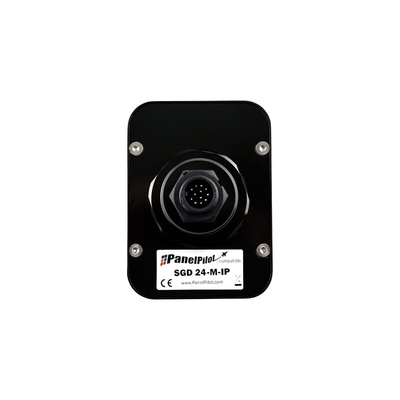

12-way connection
Colour TFT screen
Wide operating voltage of 4VDC to 30VDC
2 analogue inputs and 2 alarm outputs
SPI and I²C

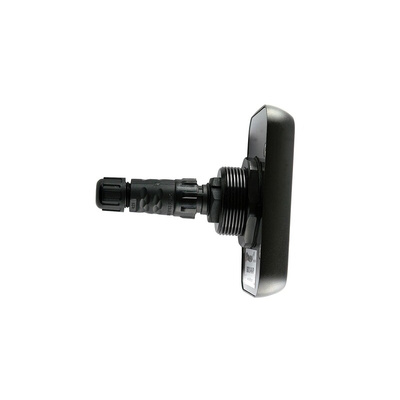

Cut-out width of 33mm and depth of 13.7mm
Operating temperature ranges between 0°C and 40°C

Certifications

IP67 rated
NEMA-6 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

VIDEO - Touch screen TFT meters

Brochure

Quick Start Guide

Datasheet
