SGD 35-M420, Lascar PanelPilot TFT Digital Panel Multi-Function Meter for Current, 74mm x 92mm, Многофункциональный измеритель

3.5" Programmable TFT 4-20mA Loop Process Meter

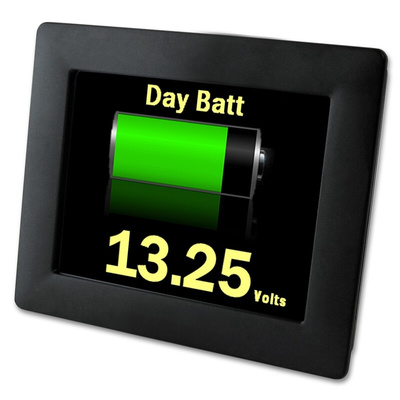

Lascar's SGD 35-M420 series is a 3.5" programmable process meter featuring two 4-20mA analogue inputs and alarm outputs with a smart graphics display-current loop indicator. This colour touch screen display is configured using the free PanelPilot M software for Windows, users can choose from an increasing number of voltmeter types that can be customised as per their needs. Choose from a number of configurations including bar-graphs, tank level, analogue styles, and trend graphs. The users can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection.

Once programming is complete, users can save all selections to the meter and computer, detach the unit and mount in their panel as they would a standard display.

Features and Benefits

3.5" colour TFT screen
Use the free PanelPilot software, to setup and customise the display. Compatible with Windows 7, 8.1 and 10
Programmable via the USB interface

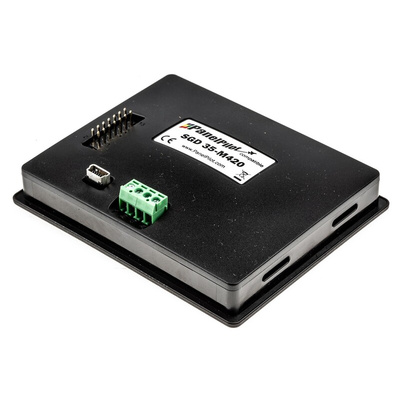

Simple panel mounting solution with screw terminal connection
Operating voltage of 4V-30V d.c.
Measures 4-20mA current loop
Digital hold

Applications

Marine
Test & Measurement
Industrial

Lascar's PanelPilot software is available for download for free from www.lascarelectronics.com/software/panelpilot-software
Easy to install and use, the control software runs under Windows 7, 8.1 and 10.

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
