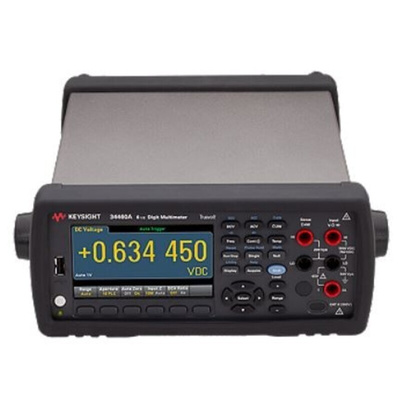

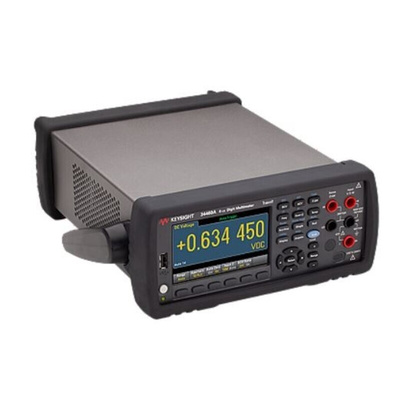

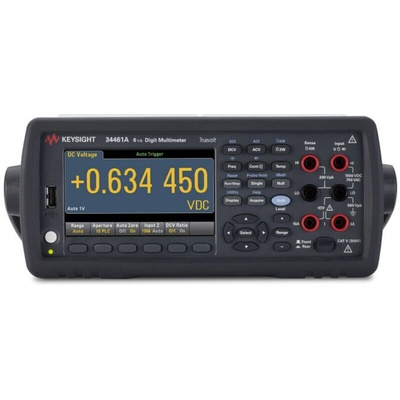

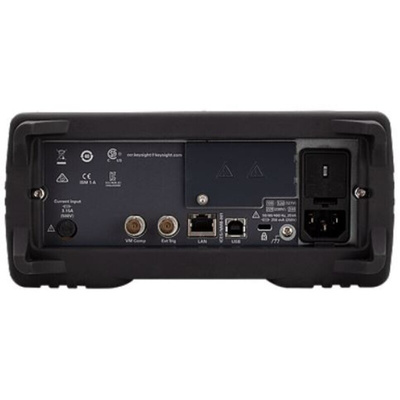

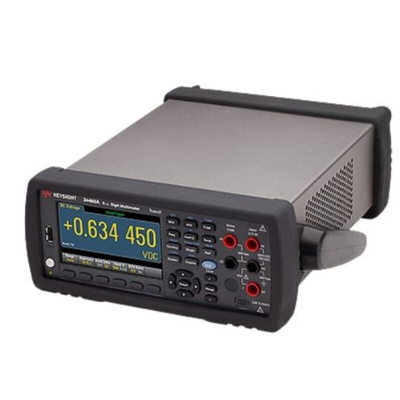

Keysight Technologies Truevolt 34461A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max, Мультиметр

Keysight 34461A Truevolt Digital Multimeter, 6.5 Digit

Truevolt DMMs are designed by the team that created the Keysight 34401A, the world best-selling digital multimeter. The measurements, reliability and familiarity of the 34401A are integrated in the design of the Truevolt 34461A. Truevolt technology starts with an analog-to-digital converter which enables a patented metrology-grade architecture. Using this architecture, Keysight delivers a beautifully engineered balance of measurement resolution, linearity and speed at a value price.

Features and Benefits

• Bright 4.3in (109mm) high-resolution colour graphical display
• Intuitive menu-driven interface
• Press and hold a key to display built-in help
• Display operation can be customised to meet user needs
• Customised labels can be added
• Quick insight with graphical views of measurement results

Next Generation

The 34461A is the next generation replacement for the popular Keysight 34401A Digital Multimeter and offers 100% of the features with improved usability and measurement technology.

New features

The Digital Multimeter results are displayed in a way you have never seen before:
• Colour, graphical display with built-in bar chart, histogram, trend and statistics. See your results on a bright 4.3 inches, high-resolution display.
• I/O: USB, LAN/LXI, GPIB (optional)
• BenchVue Enabled: Control your 34461A from your PC to view and capture your data easily.

Truevolt Technology

The Truevolt Digital Multimeters are designed by the same team that created the 34401A. The 34461A represents everything you have known and trusted with your Keysight Digital Multimeter measurements for decades.

Digitising Data

Capturing a digital readout of log measurements or records for longer periods under PC control or upload data directly from the bench multimeter. Exporting data from a single Multimeter or multiple multimeters with time alignment, to programmes such as Microsoft Excel, Word and MATLAB.

Keysight Technologies Multimeter, 100mV to 1000V DC Voltage Measurement Range, 10-Year Battery Life - Truevolt Series - 34461A

Monitor the electrical performance of your machinery using this multimeter from Keysight Technologies. It's designed to measure various parameters, including current, voltage, resistance and temperature. For ease of use, simply plug your measuring probes into the unit's built-in ports and connect their tips to the circuit. The high-resolution colour display shows histograms, bar charts and trend charts, so you can easily visualise your data.

Features & Benefits

• Maximum reading rate of 1000 readings per second for quick results
• Long battery life of 10 years for long-term performance
• Wide operating temperature range between 0°C and +55°C for use in demanding environments

Applications

• Electrical engineering
• Computer devices
• Household appliances

What's meant by true RMS?

This device is true RMS-capable, which means it can effectively measure both perfect and imperfect waveforms of AC voltage for efficient operation.

How do I transfer information from this multimeter?

This multimeter features an integrated USB port that lets you transfer data to your computer. It's also compatible with BenchVue software, which allows you to analyse your data and export it to different programs.

Standards

ISO/IEC 17025

Supplied with
type":"Supplied with",

34138A test lead set with probes, fine tip probes, SMT grabbers and mini-grabber attachments, power cord, documentation CD, IO libraries CD, USB cable,calibration certificate

34460A & 34461A Truevolt Digital Multimeter Video

Truevolt Series Digital Multimeters Operating Guide

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

34461A Datasheet

Brochure - Digital Multimeter

UN38.3 Lithium Battery Test Summary
