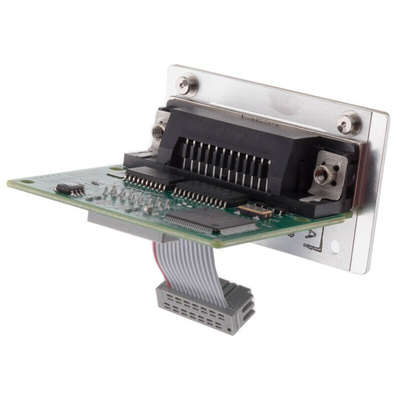

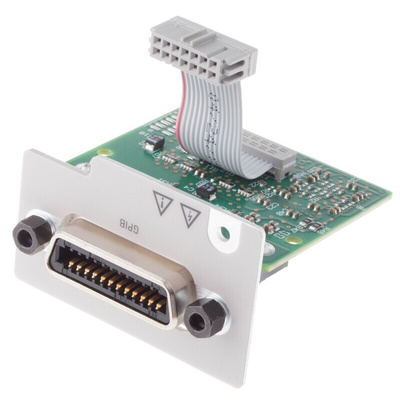

3446GPBU, Keysight Technologies GPIB User Installable Interface Module

Keysight Technologies GPIB Connectivity Upgrade, For Use With Truevolt and 33600A Trueform Series, User-Installable - 3446GPBU

Looking for a way to connect your GPIB components to your DMM or waveform generator? Use this GPIB connectivity upgrade from Keysight Technologies. As the product has its own specific error queue, you can quickly identify and fix issues with the connection. This component is compatible with DMMs from the Truevolt series and waveform generators from the 33600A Trueform series, making it a versatile choice.

Features & Benefits

• Generator saves up to 20 GPIB errors for ease of analysis
• Non-volatile configurations mean your settings will remain in place, even after a power cycle
• Setup menu lets you adjust the device according to your needs for versatility

Applications

• Aerospace industry
• Electronics testing
• Research and development

How do I install this unit into my waveform generator?

Simply remove the back plate, push the connection into the slot and insert the board into the generator until it sits flush against the rear panel. Use screws to secure it in place.

How do I change the GPIB address?

By default, the GPIB address is set to 10, but you can use the GPIB settings to change it. Cycle the power for the update to take effect.
