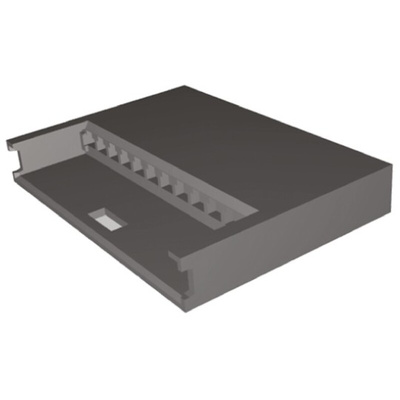

280634, TE Connectivity, AMPMODU MOD II Female Connector Housing, 2.54mm Pitch, 12 Way, 1 Row, Корпус разъема

Pin Housing

TE Connectivity brings you a range of sturdy and easy to handle 'AMPMODU MOD II' female connector housings. These housings are made from a strong LCP (Liquid Crystal Polymer) material and come with a mating lock. The housings are designed to mate with PCB and cable mounted receptacles.

Features and benefits:

•Made from a strong and sturdy 'LCP' material
•-20°C to +105°C operating temperatures
•Fully polarised housings
•Accepts male contacts
•2.54mm Pitch

Applications:

•PCB Mating
•Cable mounted receptacles

Suitable male contacts: 509-2183

2.54mm Tyco AMPMODU™ Range – MOD 2

A range of fully intermateable products on a 2.54mm (0.1in) centreline for wire to board and wire to wire applications.

AmpModu II Pin Housing 12 way

AMPMODU II Pin Housing - Drawing
