P01157153, Chauvin Arnoux PEL103 Power & Energy Data Logger, Bluetooth, Ethernet, USB, Логгер

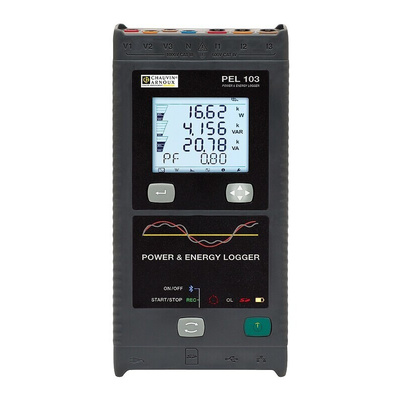

PEL103 Power Energy Logger (Unit Only)

The PEL103 Power Energy Logger is designed to measure and record the consumption of electrical installations in order to improve energy efficiency and reduce costs.

• 4 Voltage channels + 3 Current channels
• Triple digital display
• Suitable for use on single-phase, split-phase and three-phase installations

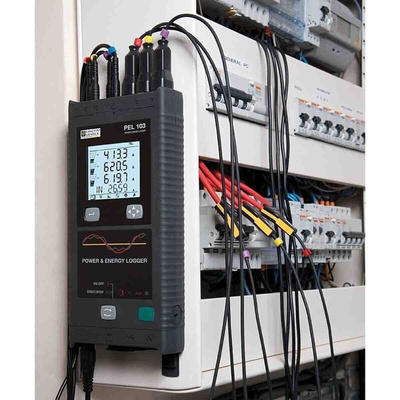

• Can be installed without cutting off the mains power supply
• Map the electrical consumption on a site
• Gain a real-time snapshot of consumption
• Analyse electrical network quality
• Record harmonics up to the 50th order with phase indication
• Record results to an SD card

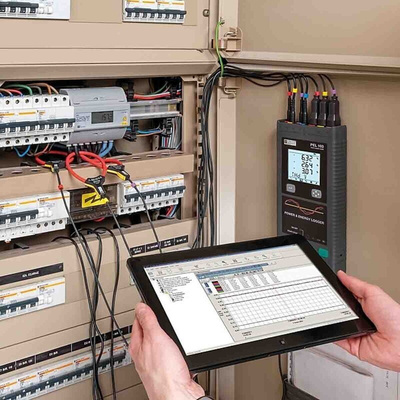

• Real-time communication with a PC
• Data transfer and analysis with supplied PEL software

The PEL103 Logger is sold without sensors. Find the MN93A clamp 236-559 and the AmpFLEX™ A193-450 mm clamp 236-565 current sensors here, available separately.

Standards

IEC 61010 600 V CAT IV – 1,000 V CAT III

Supplied with

• 4 measurement leads (straight banana, 3 m long, black)
• 4 crocodile clips (black)
• 1 SD card (2 GB)
• 1 set of rings and inserts (for ends of leads and current sensors)
• 1 mains cable
• 1 USB cable (Type A, Type B)
• 1 Multifix mounting systems
• 1 operating manual (on CD)
• 1 bag
• 1 safety datasheet
• PEL Transfer PC software
• 1 quick start-up guide
• SD Card to USB adapter

Chauvin Arnoux Data Logger

The Chauvin Arnoux is 6-channel power energy data, logger. It has an operating voltage ranges between 100VAC and 250VAC. It is designed to measure and record the consumption of electrical installations to improve energy efficiency and reduce costs.

Features and Benefits

Triple digital display
Suitable for use on single-phase, split-phase and three-phase installations
Can be installed without cutting off the mains power supply
Map the electrical consumption on a site
Gain a real-time snapshot of consumption
Analyse electrical network quality
Record harmonics up to the 50th order with phase indication
Record results to an SD card
Real-time communication with a PC
Data transfer and analysis with supplied PEL software

Applications

Used for measuring and record
1. Current
2. Energy
3. Frequency
4. Harmonics
5. Power
6. Voltage

Certifications

IEC 61010 600 V CAT IV
IEC 61010 1,000 V CAT III
IP54 rated

User’s manual PEL 102/103

Datasheet PEL 102/103

\
