P01120577Z, Chauvin Arnoux MA4000D-350 Clamp Meter, Max Current 4000A ac CAT IV

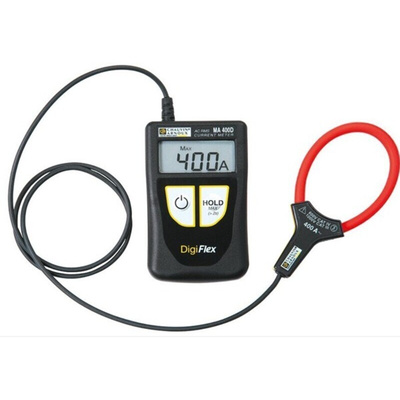

DigiFlex MA400D and MA4000D Ammeters with flexible sensor

The DigiFlex can be used for TRMS AC current measurements while also providing a solution when access to the electrical conductors is difficult. The values are read directly on the built-in 4000 count display.

DigiFlex MA400D version

The MA400D version, whose measurement range starts at 20 mA, is designed for work in residential conditions and can also be used to check electricity distribution points up to 400 A
Ammeter with a flexible sensor for measuring current on electrical conductors up to a diameter of 45mm (MD400-170) or 70mm (MD400-250)

DigiFlex MA4000D version

The DigiFlex MA4000D is a flexible current sensor with a measurement range up to 4000A, making it perfectly suited for use on power installations in the industrial and energy production sectors
The flexible sensor measure 350mm in length and can be fitted around electrical conductors with a diameter up to 100mm

Standards

IEC 61010 CAT IV 600V

Supplied with

2 x 1.5V AAA batteries, 1 elastic strap and an operating manual in 5 languages

Datasheet MA400D/MA4000D
