P01196773, Chauvin Arnoux CA 5273 Handheld Digital Multimeter, True RMS, 10A ac Max, 20A dc Max, 1000V ac Max, Мультиметр

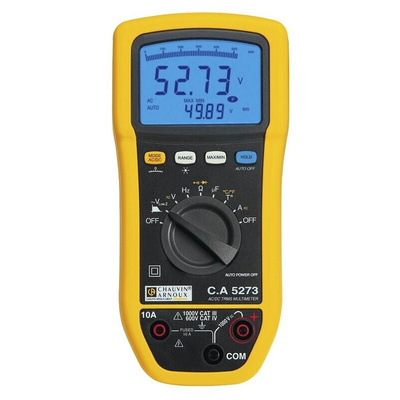

Chauvin Arnoux CA5273 True RMS Digital Multimeter

The CA 5273 is a comprehensive Multimeter for electrical maintenance of installations and small AC and DC machines, with a double 6,000-count backlit display and a 61+2-segment bargraph with remnant effect. The CA 5273 digital Multimeter is particularly compact, making it very easy to handle.
The bargraph has a central zero
AC voltage measurement with low input impedance (voltage measurements for electrical and electrical engineering applications)

What are the key features of the Chauvin Arnoux CA5273 Digital Multimeter?

• CAT IV 600V / CAT III 1,000V
• TRMS measurements
• 12-bit TRMS fast acquisition & 5 measurements per second
• Measurement of the ionization current
• Bi-mode double 6,000-count backlit display and 61+2-segment bargraph (full scale / central zero)
• Auto AC/DC selection
• Automatic or manual range selection
• VLowZ low-impedance voltage measurement with low-pass filter
• 1,000 V
• 10 A
• Resistance / audible continuity
• Temperature
• Capacitance
• Relative and differential measurements
• Max / Min storage
• 3-year warranty

What are the typical applications?

• Ideal for tertiary, industrial, electrical or electrotechnical maintenance applications
• Heating and air-conditioning
• Automotive sector
• Buildings and all installations powered by an electrical network
• General electrical applications
• Electromechanics

What’s included?

• 1.5 m red straight/elbowed cable
• CATIV 1 kV red test probe, CATIV 1 kV black test probe
• Alkaline 6LF22 9 V battery
• Wire K thermocouple + adapter
• Quick start guide in 5 languages
• Operating instructions on CD ROM in 5 languages"

Standards

CAT IV 600 V and CAT III 1000 V

Datasheet C.A 5275/5273/5277

User manual CA 5273
