Keysight Technologies E5810B 16-Port GPIB, LAN, USB USB Data Acquisition, 1.2Msps, Устройство сбора данных

7781885
Номер производителя: E5810BПроизводитель: Keysight Technologies
Цена за шт.
428100.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

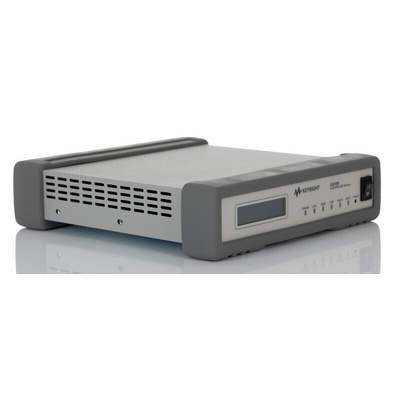

E5810B LAN/GPIB/USB Gateway

The E5810B is the next generation of the E5810A and expands the gateway's capability to include USB connectivity. It is a single connectivity solution which provides a gateway between network-equipped computer systems (using LAN) and GPIB/USB/RS-232 based instruments. This simplifies IO connectivity with a complete, one-box solution designed to meet all users' connectivity needs. The E5810B connects up to 14 GPIB instruments, up to four USB instruments (via a self-powered hub) and an RS-232 instrument. Test and product engineers, system integrators, R&D engineers, researchers and academics gain the capability to control various instrument interfaces over LAN, even remotely by wireless connection. Applications include manufacturing, troubleshooting, design validation and education.

Remote access and control of GPIB, USB and RS-232 instruments
Fast GPIB transfer rates (up to 1.2MB/s)
USB port (supporting up to 4 instruments)
Supports 1000BASE-T (1 Gigabit)/100BASE-TX/10BASE-T LAN/Ethernet connection
Power switch for hard reset
Power by adapter
Enhanced password protection
LCD display for IP address and LED indicators for activities
Wireless communication to instruments by wireless router
Field upgradable firmware
Metal casing

Supplied with

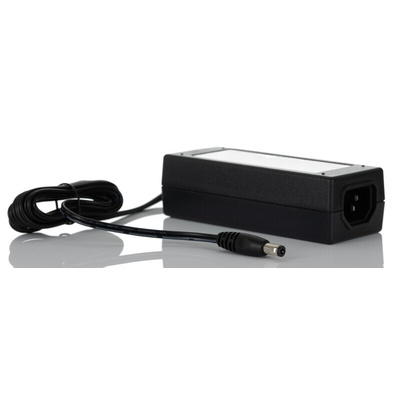

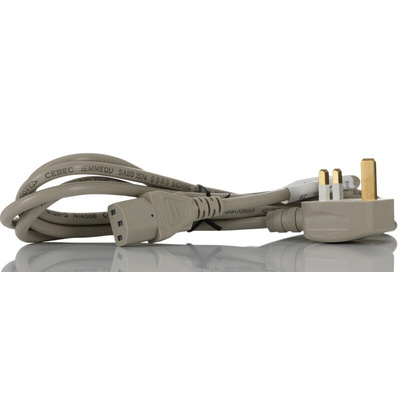

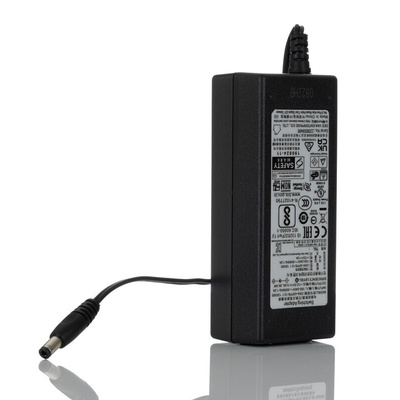

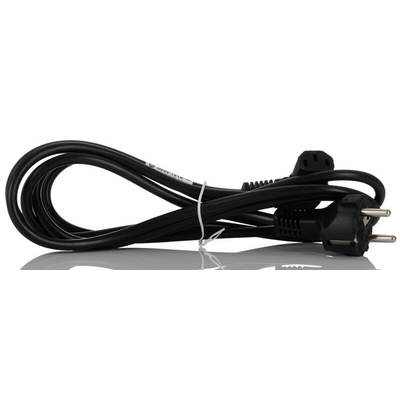

Power cord, adapter, printed Quick Start Guide, Agilent Automation-Ready CD with Agilent IO Libraries Suite

Keysight USB Data Acquisition (DAQ)

The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.

Техническая спецификация
pdfAgilent E5810B LAN/GPIB/USB Gateway Users Guide
pdfDatasheet
Вес:
1.3кг
Высота:
61мм
Длина:
238мм
Источник питания:
Сеть
Количество входных каналов:
16
Модель р:
E5810B
Подключение:
GPIB, LAN, USB
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
0°C
Тип входа:
Цифровой
Тип выхода:
RS232
Частота выборки:
1.2Msps
Ширина:
226.5мм
