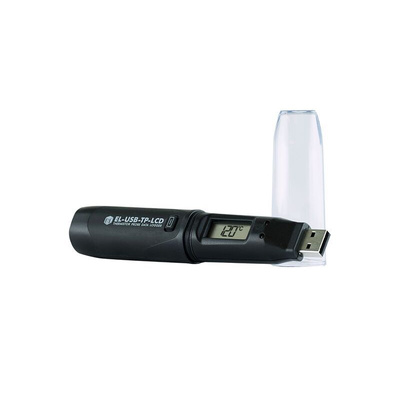

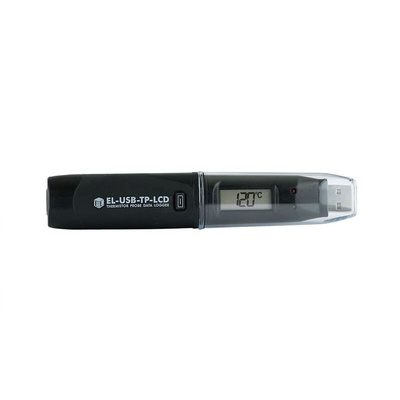

EL-USB-TP-LCD, Lascar Data Logger for Temperature Measurement, Логгер

Lascar Data Loggers

The Lascar EL-USB-TP-LCD standalone data logger measures and stores over 32,000 temperature readings between -40°C and 125°C (-40°F to 257°F) and is supplied with a high accuracy thermistor probe. It features an LCD and pushbutton, which allows the user to cycle through the most recent, highest and lowest stored readings. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis
.
Supplied with

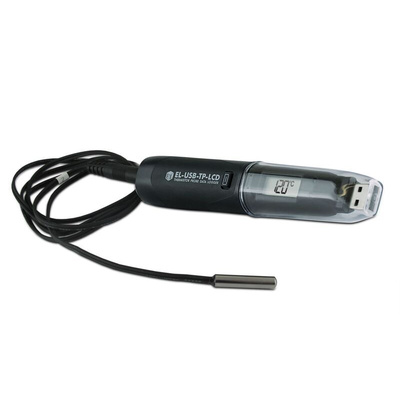

1/2 AA battery, 1M thermistor probe and wall mount clip

Features and Benefits

The measurement ranges between 40°C and 125°C (-40°F to 257°F)
Temperature measurement accuracy is ±0.6°C
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate, delayed and push-to-start logging
User-programmable alarm thresholds
High contrast LCD with two and a half digit temperature display function
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery

Applications

Chilling, freezing and storing food
Vaccine storage

EL-USB-TP-LCD - Quick Start Guide

EL-USB-TP-LCD - Thermistor Probe Datasheet

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Lithium Battery Test Document
