2902991, Phoenix Contact UNO-PS/1AC/24DC/30W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output,, Блок питания

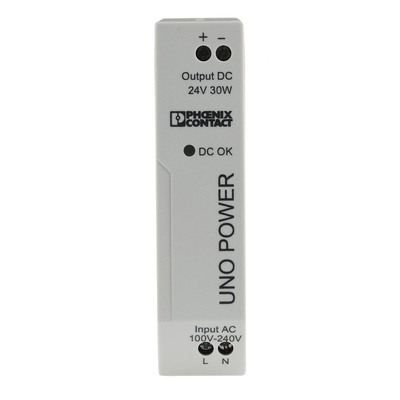

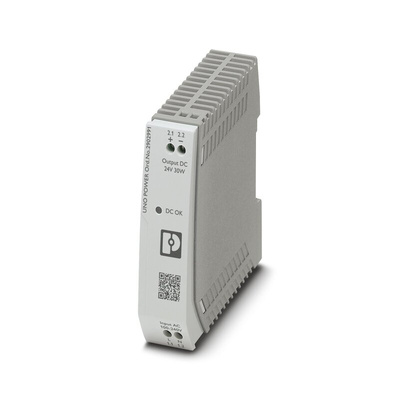

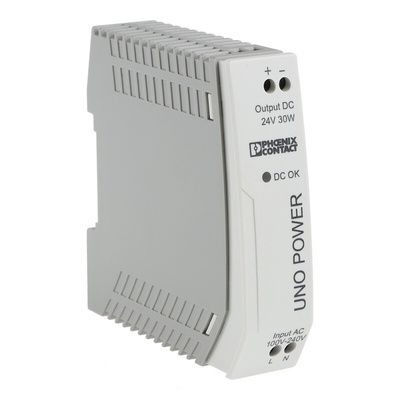

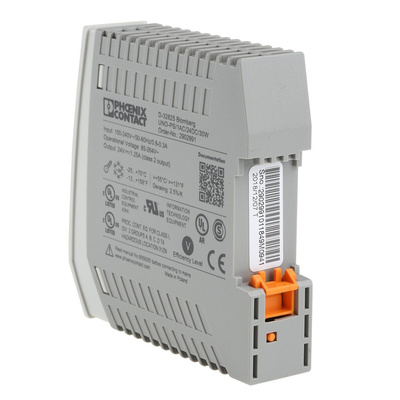

Phoenix Contact DIN Rail Power Supply, Single Output, 150g Weight - UNO-PS/1AC/24DC/30W - 2902991

When streamlining matters, reach for this DIN rail power supply from Phoenix Contact. With slim dimensions of just 22.5 (W) x 90 (H) x 84mm (D), it takes up minimal space in your control cabinet. At the same time, it packs a powerful punch with its 30W power rating and 24V DC output voltage, making it an ideal solution for heavy loads. The unit accepts a wide range of inputs from 85 to 264V AC, so you can rest assured it's compatible with high-powered machinery.
You'll save energy during use thanks to a high efficiency of around 88% and low idling losses under 0.3W. This power supply is touchproof and safe from objects over 12.5mm, earning it an IP20 rating. Transient surge protection keeps you safe from shock during sudden voltage spikes. And with a mean time between failures of over 1,158,000 hours, this little powerhouse is in it for the long haul.

Features & Benefits

• Ripple and noise of just 60mV pk-pk means interference is minimised
• Suitable for outdoor and industrial environments with a wide operating range from -25°C to +70°C
• Clip-on DIN rail mounting ensures time-saving installation without tools
• Safe to use near moving machinery, thanks to shock and vibration resistance conforming to IEC 60068-2-27

Datasheet 2902991

2902991 Installation Instructions

2902991 Manual

Line Drawing - 2902991
