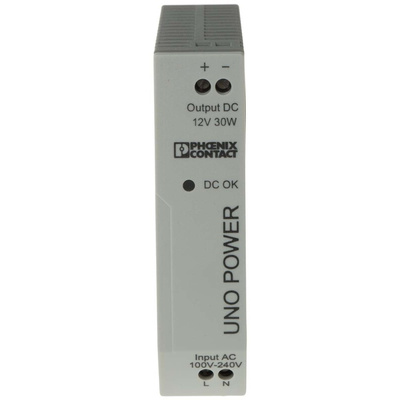

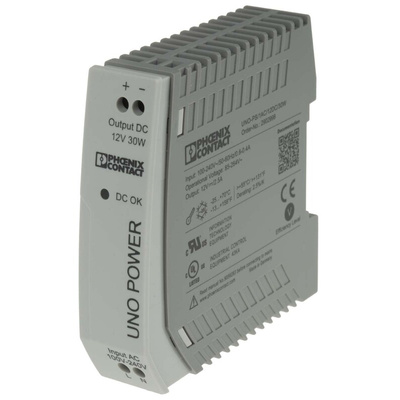

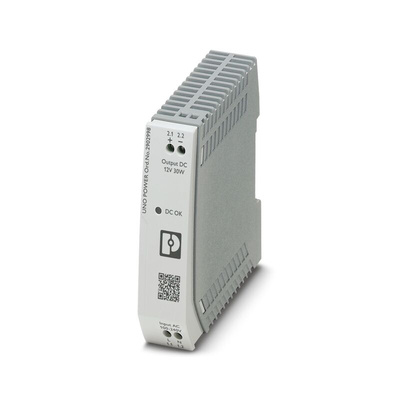

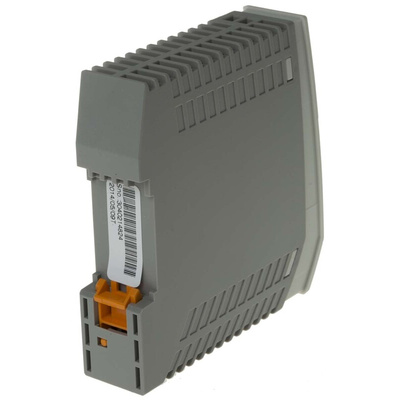

2902998, Phoenix Contact UNO-PS/1AC/12DC/30W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output,, Блок питания

Phoenix Contact UNO Single Phase Power Supplies

The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.

Features and Benefits:

• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W

How do I wire a DIN rail power supply?

The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Phoenix Contact UNO-PS/1AC/12DC/30W Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - 2902998

This Phoenix Contact DIN rail power supply with DC output voltage, 30W power rating is a high efficiency switch mode power supply designed for single phase power supply applications. With a compact design and DIN rail mounting capability, this power supply is ideal for use in automation, electronics, electrical, and mechanical industries. The UNO PS/1AC/12DC/30W series provides reliable power distribution with exceptional efficiency and low idling losses, ensuring optimal energy efficiency.

Features & Benefits

• Efficient power supply with a power rating of 30W and an output voltage of 12V DC
• Compact design for easy DIN rail mounting, saving space in control cabinets
• Wide temperature range from 25°C to +70°C, suitable for outdoor installation
• High degree of efficiency with over 87% efficiency and low idling losses under 0.3W
• Reliable performance with a MTBF of 500,000 hours
• Suitable for single phase power supply applications

Applications

• Ideal for use in compact control boxes in industrial automation systems
• Suitable for power distribution in electrical equipment and machinery
• Designed for use in electronics applications where reliable power supply is essential

Can it withstand wide temperature variations?

Yes, the Phoenix Contact DIN rail power supply is designed to operate in a wide temperature range from -25°C to +70°C.

Will it save space in control cabinets?

Yes, the compact design of the power supply allows for easy DIN rail mounting, providing more space in control cabinets.

Is it suitable for outdoor installation?

Yes, with a wide temperature range and high energy efficiency, this power supply is ideal for outdoor applications.

Can it be used in single-phase power supply systems?

Yes, the power supply is specifically designed for single-phase power supply applications in various industries.

Does it provide reliable power distribution?

The power supply offers reliable performance with a high MTBF of 500,000 hours, ensuring uninterrupted power supply in critical applications.

Datasheet 2902998

Instruction Sheet - 2902998

Line Drawing - 2902998
