2902993, Phoenix Contact UNO-PS/1AC/24DC/100W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output,, Блок питания

Phoenix Contact UNO Single Phase Power Supplies

The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.

Features and Benefits:

• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W

How do I wire a DIN rail power supply?

The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

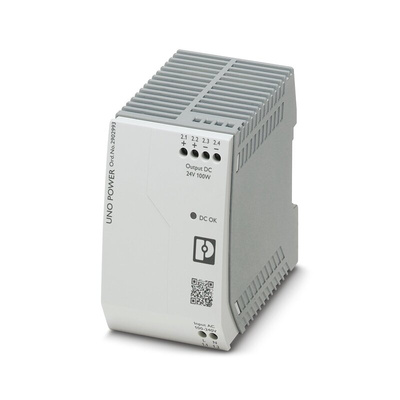

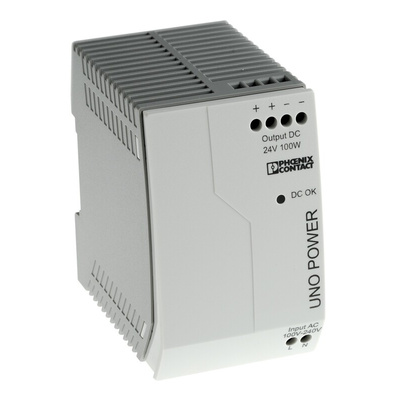

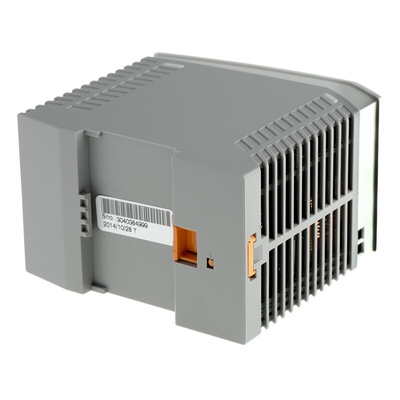

Phoenix Contact Switch Mode Power Supply, 4.2A, 24V DC - UNO-PS/1AC/24DC/100W - 2902993

This switch mode power supply from Phoenix Contact is suited to energising high power density industrial equipment and components. It efficiently switches alternating current (AC) into a direct current (DC) supply to run appliances and equipment used in industrial process control and automation applications.
For convenient and quick assembly, the device is easy to mount onto a DIN rail. Its slim profile saves space in a busy control cabinet for improved packing efficiency. A mean time between failures of 500,000 hours makes the unit reliable and able to provide consistent performance over its entire lifecycle. You'll find screw connectors on this power supply to ensure secure wiring that's unlikely to work loose, even in vibrating operating conditions.
Choose a component like this for power distribution and industrial lighting applications. It has a high power rating of 100W combined with low operating noise.

• Accepts a wide input voltage of 85 to 264V AC for compatibility with a broad range of power inputs
• Compact dimensions of 90 (H) x 55 (W) x 84mm (D) for space efficiency
• Wide operating temperature range of -25°C to +70°C for use in demanding conditions, both indoors and outdoors
