2902999, Phoenix Contact UNO-PS/1AC/12DC/55W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output,, Блок питания

Phoenix Contact UNO Single Phase Power Supplies

The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.

Features and Benefits:

• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W

How do I wire a DIN rail power supply?

The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

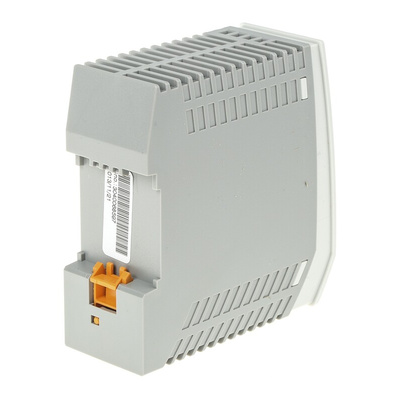

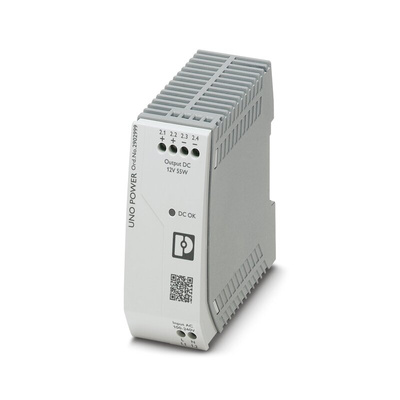

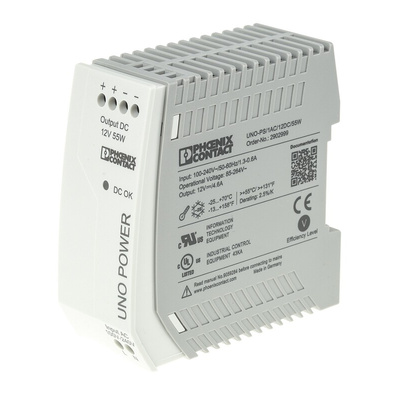

Phoenix Contact DIN Rail Switch Mode Power Supply, 85 to 264V AC Input, 12V DC Output - UNO-PS/1AC/12DC/55W - 2902999

Keep your equipment running smoothly with this DIN rail power supply from Phoenix Contact. The unit handles loads up to 240W and converts incoming current to the correct voltage, current and frequency for the efficient performance of your applications. You can confidently use it to power process control, factory automation and power distribution processes. It's suitable for many different devices, including sensors, programmable logic controllers (PLCs) and motors.
The unit's slimline dimensions – with a weight of 200g, housing depth of 84mm and width of 90mm – make it ideal for installation in compact control boxes. Achieve optimum levels of energy efficiency thanks to the power supply's low idling losses and high power density. It dissipates very little power for maximum efficiency. As it's designed for DIN rail mounting, you can simply snap the device onto a rail quickly and simply.

• Broad operating temperatures from -25°C to +70°C offer versatility for indoor and outdoor use
• IP20 (ingress protection) rating assures you the live wires and contacts are shielded from finger touch to prevent electric shocks
• EN 61000-6-2:2005 and EN 61000-4-2 compliance means the product has passed safety and environmental quality testing

Datasheet 2902999
